GT102B Drain Pipe Camera
10.1 inch
1920*1080
IPS HD the full view screen
Support 1TB
U disk
6KG

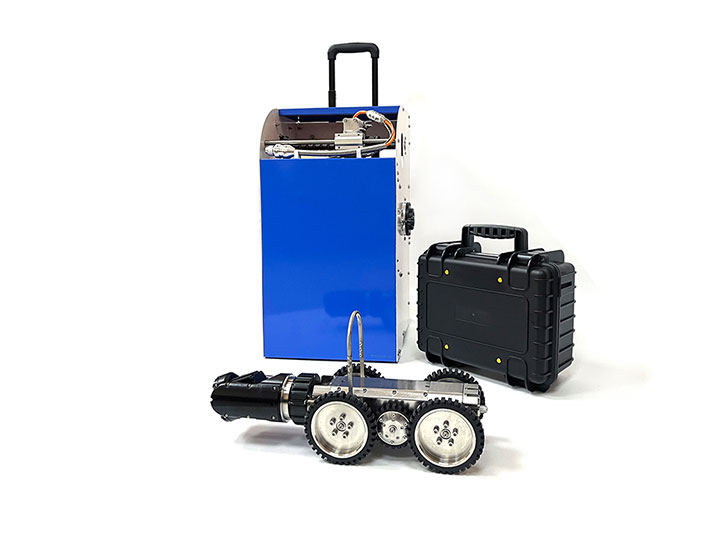

Jiutai GT102B CCTV sewer drain pipe inspection crawler robotic camera supports HD front and rear dual-view images. Equipped with a 10 inch screen portable intelligent controller, auxiliary powerful lighting source and meter cable device, auto electric wire reel. This drain video inspection camera can enter the internal pipeline for video recording, defect capture, 10 times auto zoom in and out, record defect location information.
GT102B CCTV pipe inspection crawler robotic camera for pipe inspection is widely used in the internal video inspection of petrochemical pipelines, gas pipelines, municipal pipelines, garden pipelines, air separation pipelines, and other large space containers.
Range:150mm-2000mm
Length: 100m(standard)-customized

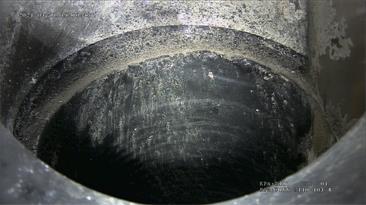

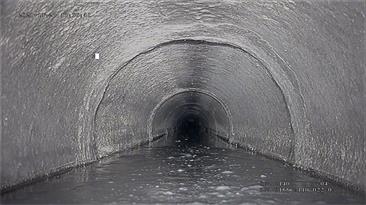

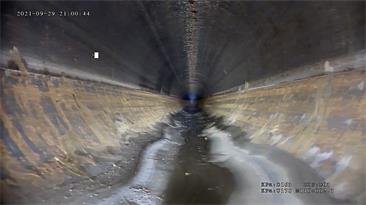

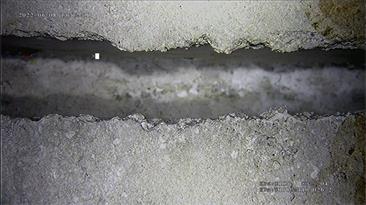

Pipe Crawler Robotic Camera records and displays the conditions inside the pipe on a monitor screen. This facilitates effective observation, detection, quick analysis, and diagnosis by working personnel.
10 times auto zoom in and out function , not limited by space size.
Macro focus adjustable technology, HD display of the detected object.
Camera Pixel:2 megapxiel ,HD camera to restore details.

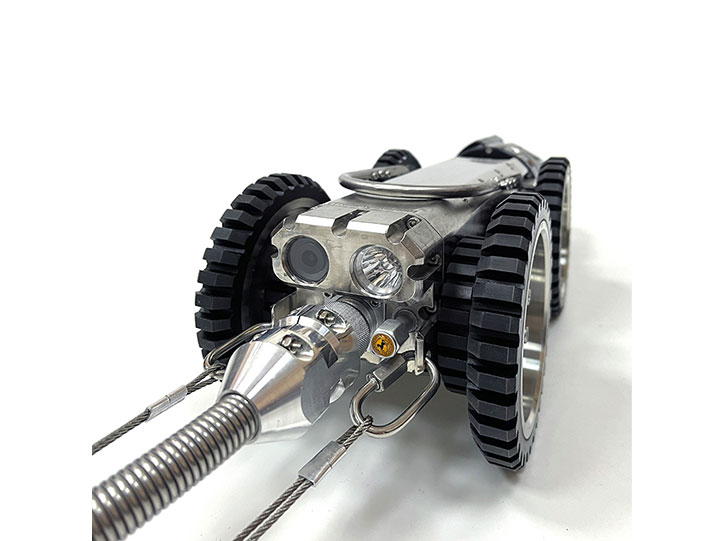

Front and rear double Camera.
Equipped with high brightness LED lighting source.
Accurate meter meter device to assist in judging the location of defects.
Real-time annotation , and timely recording of defect information.
10 inch screen , resolution 1920*1080.

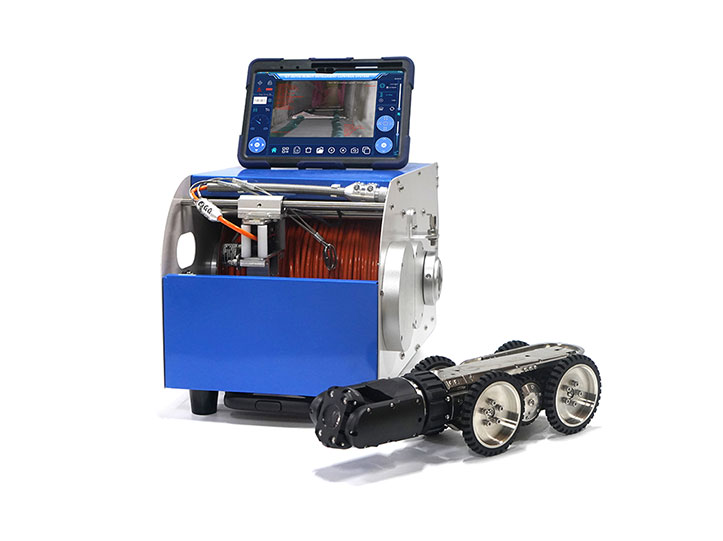

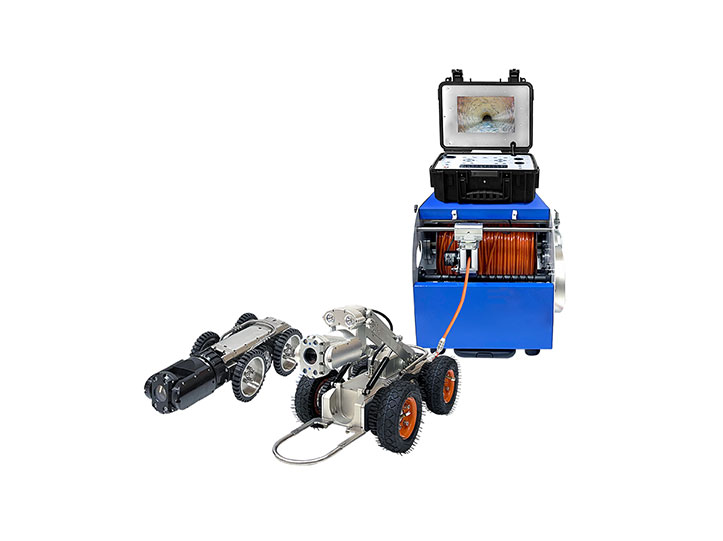

N+1 Multifunction pipe crawler camera
Portable electric wire reel
Tablet controller

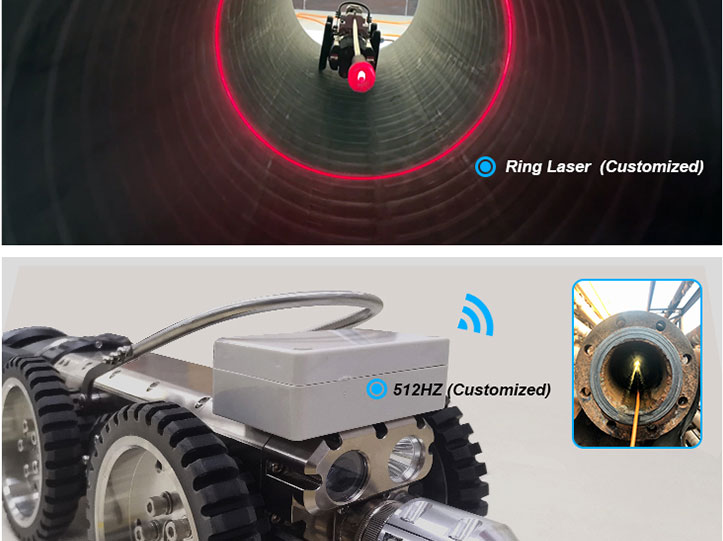

Support customized HDMI, 512HZ, Inspection report.
| Screen size | 10.1 inch |
| Resolution | 1920*1080 |
| Screen material | IPS HD the full view screen |
| Language | English,Spanish,Russian,French |
| Keyboard | Standard |
| Display character | Meter counter |
| Slope | |
| Storage | U disk |
| Storage capacity | Support 1TB |
| Video output interface 1 | HDMI |
| Special function | Lens reset function, meter clear zero, protection remove function |
| Weight | 6KG |
 GT108 |  GT102B |  GT102A | |
| Working length | 300m | 150m | 150m |
| Min/Max Pipe Diameters | 200-3500mm(8”-137”) | 150-2000mm(6”-78”) | 120-600mm (5”-24”) |
| Waterproof | IP68 | IP68 | IP68 |
| Front camera | Pan Tilt Zoom auto focus | Pan Tilt Zoom auto focus | Pan-and-tilt auto focus |
| Rear-view camera | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip Electric Lifting | 360°rotate 220°flip | 360°rotate 220°flip |
| pixel | 1920X1080 /2560X1600 | 1920X1080 | 1920X1080 |
| Extra Features | Inclinometer, Inspection Report, Wheels of different dia. Laser(optional | ||
We are professional manufacturer of cctv pipe inspection camera system with lots of years R&D and market research experience.The price is competitive and after-sales is guaranteed
Pipe inspection borescope camera,CCTV Sewer crawler robotic camera,Videoscope camera,Portable Push rod camera,Explosion-proof Container Inspection Camera,Borehole camera,Manhole Camera,Sewer cleaning manchine, Pipeline NDT repair .
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
We will recommend you the most suitable program according to your working condition.
+86 166 9219 0701
Room No. 1009,Xinyuan Financial Square,Jingsan Road,Zhengzhou City
Project country:
Singapore
Field:
Wind power generation
Equipment:
Industrial pipeline crawler camera
Project:
Wind power blade internal defect inspection
Project country:
Malaysia
Field:
Power plant
Equipment:
Pipe Inspection Camera
Project:
Check the hidden danger of water wall burst pipe
Project country:
Malaysia
Field:
Aluminium plan
Equipment:
Pipe Inspection Crawler Robot
Project:
Alumina pipe inside scar inspection
