PRODUCTS
GT-PTZ Sewer pipe borescope camera
Zoom function
49mm metal len
IP68 waterproof
7 inch HD screen
49mm,37mm,21mm,8mm
9~800mm
Megapxial or customized
360 degree endless rotation
IP68 Waterproof

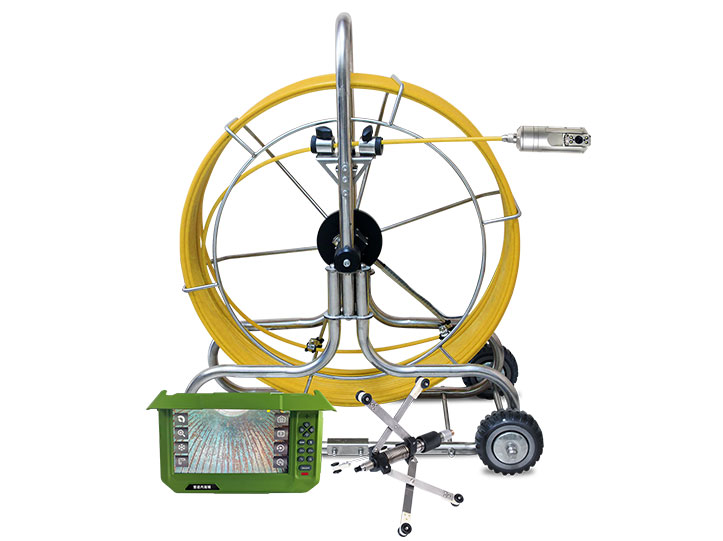

Jiutai GT-PTZ sewer pipe borescope camera series multifunctional sewer pipe borescope camera is composed of portable controller, HD panoramic camera len, and GFRP hard inspection cable reel. Through the panoramic len, the inspection image and data are transmitted to the controller in real time through all-round observation inside the pipeline. It is suitable for the inspection of working conditions such as 9~800mm pipelines and containers, and records and archives defects such as cracks, corrosion, blockage, welds, foreign matter, etc. inside the working conditions.
GT-PTZ sewer pipe borescope camera is designed for NDT inspection, and features high resolution, 8mm, 21mm, 37mm, 49mm camera lens optional, a 7 inch LCD monitor with DVR, a heavy-duty case that all parts included, etc.
It is widely used in the inspection and maintenance of pipelines or containers, such as energy and electricity, petrochemical industry, technical supervision, aerospace and military industry, production and manufacturing, scientific research institutes, etc.
Industrial pixel: 1000000

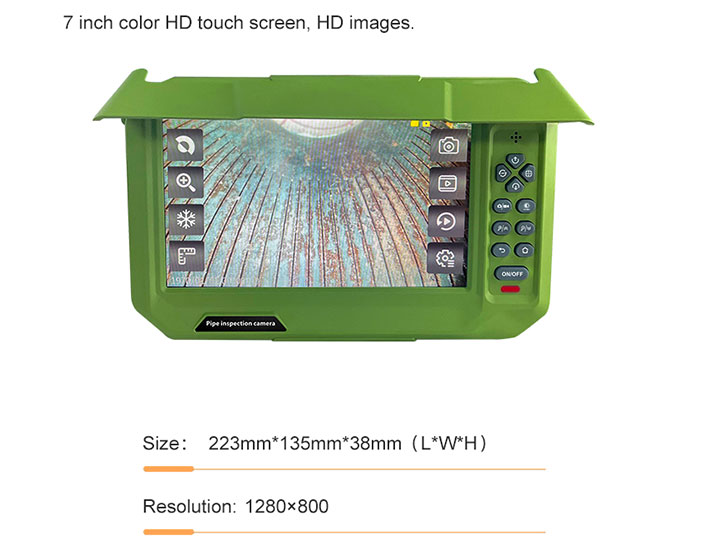

7 inch HD display
8mm, 21mm,37mm,49mm lens optional.
Meter counter, easy to determine the location of defects.
512HZ is customized.
With keyboard, can edit in real time.
Inspection Range: 9mm-800mm
High brightness LED adjustable light source
IP68 Waterproof
Endurance: 8h
cable length: 30-120m
Languages: Chinese, English, French, Spanish, Russian
| Screen | Portable 7 inch screen |
| Screen resolution | 1920*1080 |
| Inspection range | 9~800mm |
| Storage capacity | 32GB |
| Rotate | 360 degree rotation endless |
| Flip | 220 degree flip |
| Waterproof | IP68 waterproof |
| Inspection cable wire dia | 8.2mm |
| Function | zoom, count meter reset |
 Gt220 |  GT230 |  GT31dv | |
| Working length | 20-100m | 10-120m | 10-30m |
| Min/Max Pipe Diameters | 20-400mm | 7-800mm | 10-200mm |
| Waterproof | IP68 | IP68 | IP67 |
| Camera | Pan Tilt | Pan Tilt | Wide angle view |
| Video, Picture | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip | 360°rotate 220°flip | / |
| Pixel | 1920X1080 | 1920X1080 | 1024X600 |
| Other | Customized | ||
Machine Parts Of GT-PTZ Sewer pipe borescope camera:

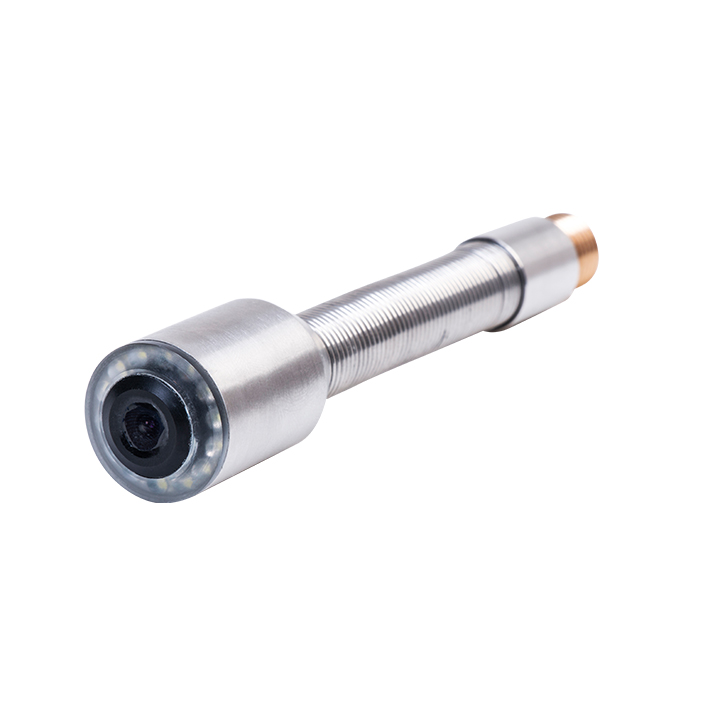

21mm wide angle camera:
Lens pixel: 100W
White balance: Yes, white balance without glare
Field of view: 120°
Number of lights: 14Pcs
Light brightness: 40000LUX
Depth of field: 20-85mm
Length: 107mm
Viewing direction: wide angle straight view
Applicable tube diameter: ≥23mm
Waterproof level: IP68
37mm camera len:
Lens pixel: 100W
White balance: Yes, white balance without glare
Field of view: 120°
Number of lights: 10Pcs
Light brightness: 100000LUX
Depth of field: 5mm-∞
Length: 117mm
Viewing direction: 360° endless rotate
Applicable tube diameter: ≥39mm
Waterproof level: IP68

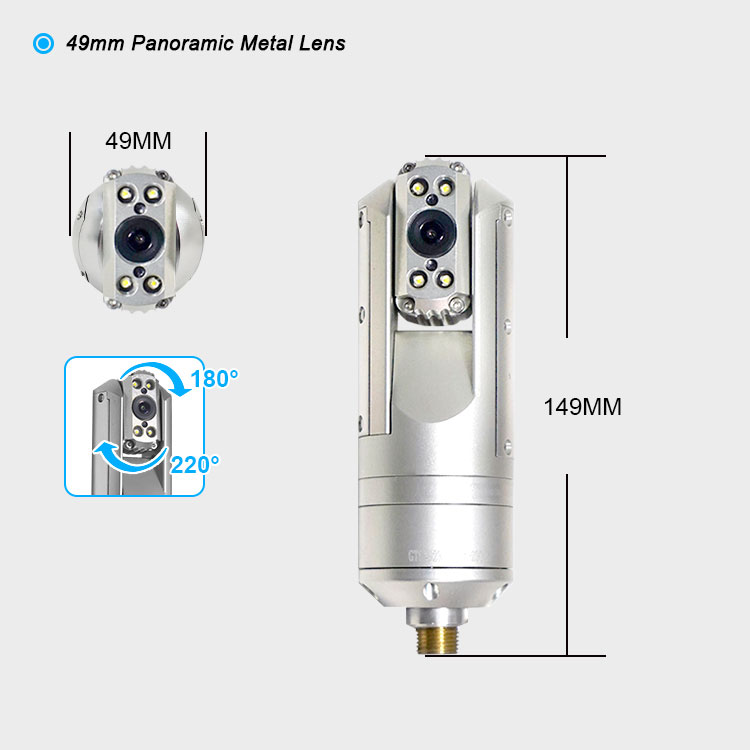

49mm camera len: Lens pixel: 100W
White balance: Yes, white balance without glare
Field of view: 120°
Number of lights: 4Pcs
Light brightness: 40000LUX
Depth of field: 5mm-∞
Length: 149mm
Viewing direction: 360° endless rotate
Applicable tube diameter: ≥50mm
Waterproof level: IP68
We are professional manufacturer of pipe inspection camera system, Factory price!
Pipe inspection camera,CCTV Sewer crawler robot,Videoscope camera,Portable Push rod camera,Explosion-proof container camera,Borehole camera,Sewer cleaning manchine, Pipeline NDT repair
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
We will recommend you the most suitable program according to your working condition.
