PRODUCTS

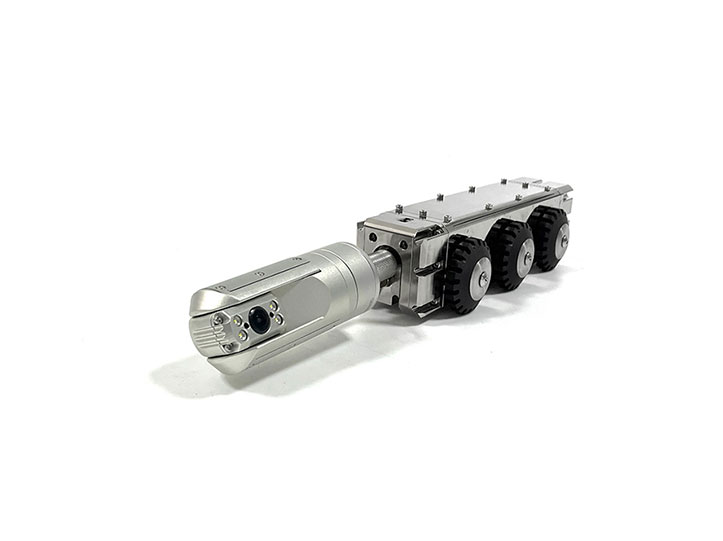

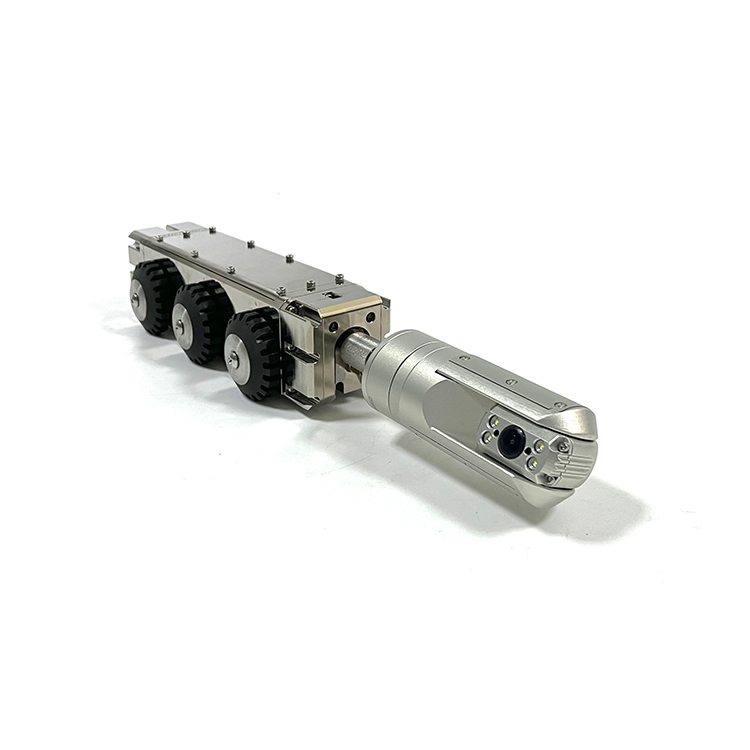

GT102 Pipe crawler camera

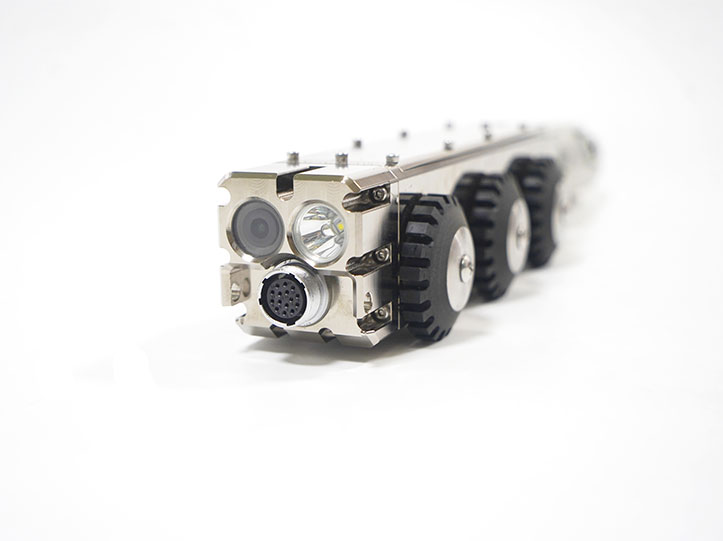

49mm metal camera len
Anti-collision and wear-resistant
small body,suitable for small pipe
IP68 Waterproof
10’’ color LCD
1920*1080
2000000
49mm
360° degree rotate endless,180° degree flip
Portable electric wire reel

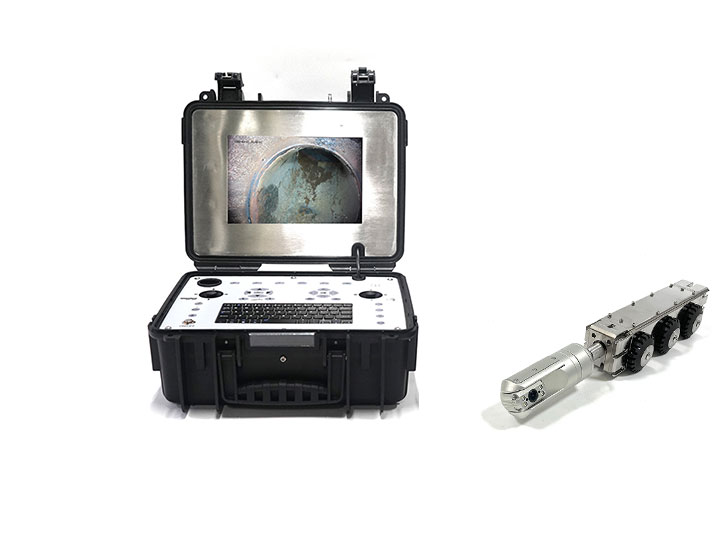

The GT102 industrial pipeline inspection crawler camera is a compact and lightweight ultra HD NDT inspection equipment. It suitable for 120-600mm pipe. 49mm metal lens anti-collision wear, IP68 waterproof, 360° endless rotation,180° flip, the robot controls the advance and retreat, turning, rotation and flipping of the lens through the joystick, and the focus, recording, playback, etc. with a light touch button, providing timely and detailed image evidence for judgment.
GT102 industrial pipeline inspection crawler camera is suitable for pipe diameter 120-600mm, inspection length 100~150 meters optional, wide range of applications. The pipe crawler camera can go into the pipe to check the inner pipe work condition, such as cracks, defects, damage detection, blockage, and so on. This pipe inspection crawler camera is widely used in many fields, mainly used in petrochemical industry, sanitation pipes, energy and electricity, aluminum industry, metallurgy, steel structure, pressure vessel, boiler manufacturing, steel pipe manufacturing, machinery manufacturing, etc.
IP68 Waterproof ,anti-corrosion, can be used in different place.
Forward ,backward,turn freely and adjustable speed.
With ambient light and adjustable illumination.
Lens 360°rotation and reversal without death angle.

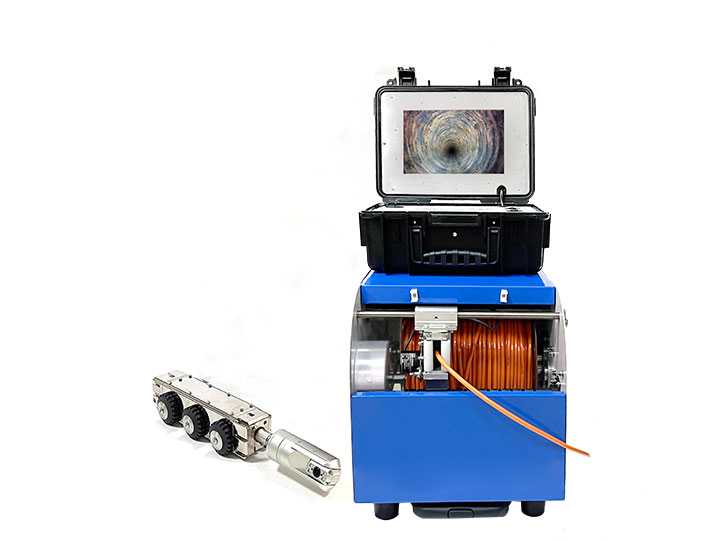

Electrical Barrow, automotical and manual operation reel.
DIP, Meter counter, Pressure data are shown on the monitor.
Video can be storage and replay on the control box.
Laser is standard,512 HZ is customized.
| Screen Size | 10’’ color LCD |
| Resolution | 1920*1080 |
| Pixel | 2000000 |
| Camera Diameter | 49mm |
| Rotate | 360° infinite rotate,180° constant flip |
| Cable Reel | Electrical Barrow |
| Suitable pipe diameter | 120-600mm |
| Cable | 100m -150m |
| Waterproof | IP68 Waterproof |
 GT108 |  GT102B |  GT102A | |
| Working length | 300m | 150m | 150m |
| Min/Max Pipe Diameters | 200-3500mm(8”-137”) | 150-2000mm(6”-78”) | 120-600mm (5”-24”) |
| Waterproof | IP68 | IP68 | IP68 |
| Front camera | Pan Tilt Zoom auto focus | Pan Tilt Zoom auto focus | Pan-and-tilt auto focus |
| Rear-view camera | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip Electric Lifting | 360°rotate 220°flip | 360°rotate 220°flip |
| pixel | 1920X1080 /2560X1600 | 1920X1080 | 1920X1080 |
| Extra Features | Inclinometer, Inspection Report, Wheels of different dia. Laser(optional) | ||
Machine Parts Of GT102 CCTV Sewer Pipe Inspection Crawler Camera:
We are professional manufacturer in this field with lots of years R&D and market research experience.
Pipe inspection camera,CCTV Sewer crawler robot,Videoscope camera,Portable Push rod camera,Borehole camera,Sewer cleaning manchine, Pipeline NDT repair .
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
Order Process and Synchronized Information Services
We will synchronize the production progress of the CCTV Pipe inspection crawler camera to the customer, so that the customer can know the production status of the order at any time.
1.We can accept Factory Audit requirements from third parties or customers.
2.We can accept Order Inspection requirements from third parties or customers.
3.In-depth technical cooperation, Project research and development is welcome.
4.Provide cost-effective transportation channels (of course customers can choose their own shipping forwarders).
We will recommend you the most suitable program according to your working condition.
+86 166 9219 0701
Room No. 1009,Xinyuan Financial Square,Jingsan Road,Zhengzhou City
Project country:
Singapore
Field:
Wind power generation
Equipment:
Industrial pipeline crawler camera
Project:
Wind power blade internal defect inspection
Project country:
Malaysia
Field:
Power plant
Equipment:
Pipe Inspection Camera
Project:
Check the hidden danger of water wall burst pipe
Project country:
Malaysia
Field:
Aluminium plan
Equipment:
Pipe Inspection Crawler Robot
Project:
Alumina pipe inside scar inspection
