GT102APro Pipeline Inspection crawler camera
IP68 Waterproof,4MGP,Laser
Wireless transmission
Real-time inspection report system
12’’ color LCD
2560*1600
4000000
51mm
360° degree rotate endless,220° degree flip
Portable electrical cable reel winder

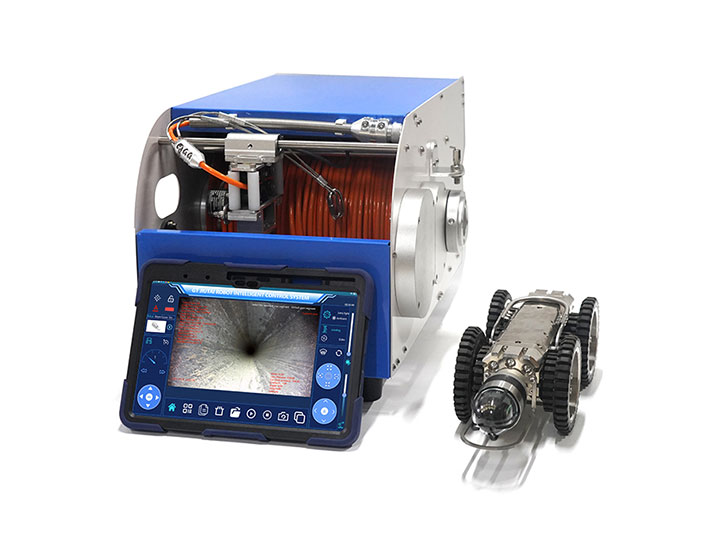

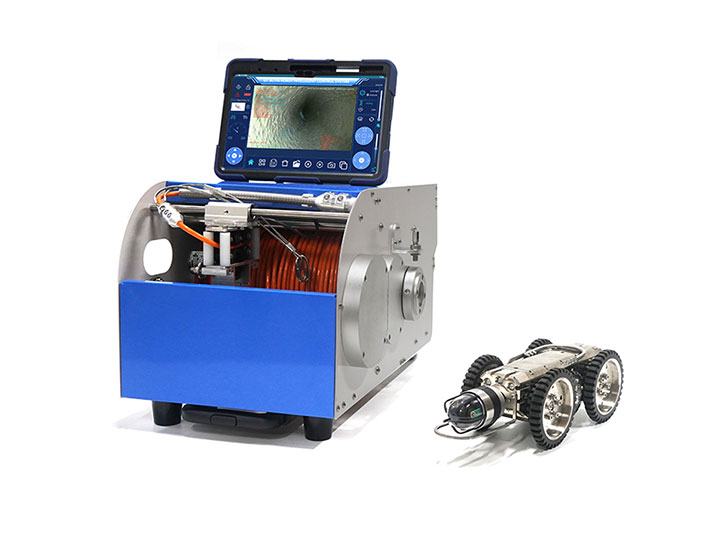

Jiutai GT102APro pipeline inspection crawler robot cameras can replace manual entry into the sewer mainline pipeline. It is equipped with 4MP HD Camera, 360 degree endless rotation 220 degree flip, portable electrical cable reel winder. IP68 waterproof and use the tablet to control crawler body, touch button focusing, recording, playback, etc., providing timely and detailed image evidence for inspections. Support inspection report system.
GT102APro Underground Sewer Pipe network inspection crawler robot cameras are suitable for pipe diameter 120-600mm, with max cable 150m. This pipeline inspection robot camera can go into the pipe to check the inner pipe condition, such as cracks, defects, damage detection, blockage, and so on. This pipe inspection crawler camera is widely used in many fields, such as gas pipes, oil pipes, petroleum, chemical industry, nuclear power, and high corrosion pipeline video detection.
IP68 Waterproof ,anti-corrosion, can be used in different place.
Forward ,backward,turn freely and adjustable speed.
With ambient light and adjustable illumination.

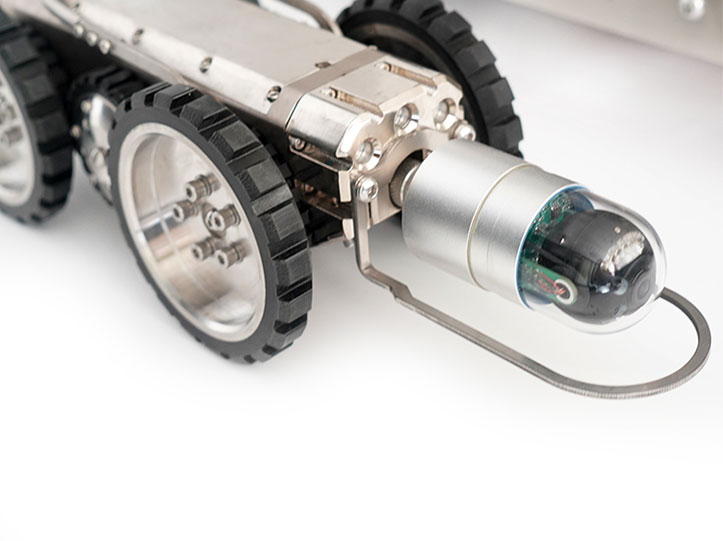

Lens 360°rotation and 220without death angle.
Electrical Barrow, automotical and manual operation reel.
DIP, Meter counter, Pressure data are shown on the monitor.
Video can be storage and replay on the control box.
Laser is standard,512 HZ is customized.
4MGP HD Pixel
real time inspection report system
Wireless transmission
Six-wheel drive
| Screen Size | 12’’ color LCD |
| Resolution | 2560*1600 |
| Pixel | 4000000 |
| Camera Diameter | 51mm |
| Rotate | 360° infinite rotate,220° constant flip |
| Cable Reel | Electrical Barrow |
| Suitable pipe diameter | 120-600mm |
| Cable | 120m standard-customized |
| Waterproof | IP68 Waterproof |

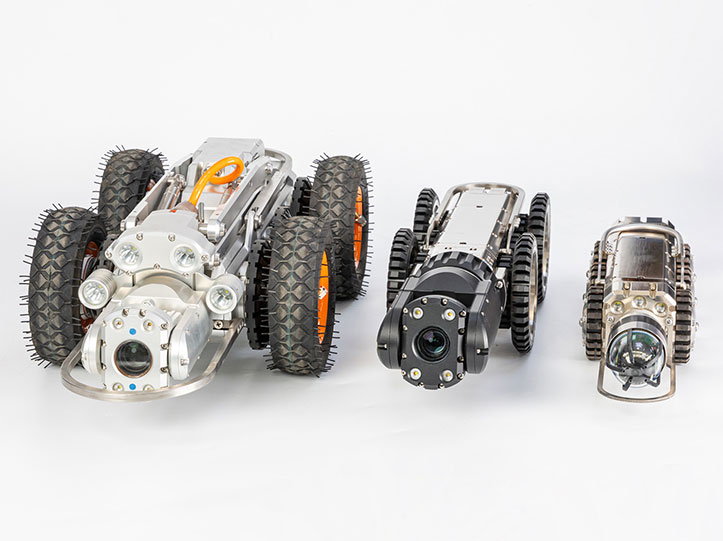

 Gt108 |  GT102B |  GT102A | |
| Working length | 300m | 150m | 150m |
| Min/Max Pipe Diameters | 200-3500mm(8”-137”) | 150-2000mm(6”-78”) | 120-600mm (5”-24”) |
| Waterproof | IP68 | IP68 | IP68 |
| Front camera | Pan Tilt Zoom auto focus | Pan Tilt Zoom auto focus | Pan-and-tilt auto focus |
| Rear-view camera | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip Electric Lifting | 360°rotate 220°flip | 360°rotate 220°flip |
| pixel | 1920X1080 /2560X1600 | 1920X1080 | 1920X1080 |
| Extra Features | Inclinometer, Inspection Report, Wheels of different dia. Laser(optional) | ||
Machine Parts Of GT102APro CCTV Sewer Pipe Inspection Crawler Camera:
We are professional manufacturer in this field with lots of years R&D and market research experience.
Pipe inspection camera,CCTV Sewer crawler robot,Videoscope camera,Portable Push rod camera,Borehole camera,Sewer cleaning manchine, Pipeline NDT repair .
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
Order Process and Synchronized Information Services
We will synchronize the production progress of the CCTV Pipeline inspection crawler cameras to the customer, so that the customer can know the production status of the order at any time.
1.We can accept Factory Audit requirements from third parties or customers.
2.We can accept Order Inspection requirements from third parties or customers.
3.In-depth technical cooperation, Project research and development is welcome.
4.Provide cost-effective transportation channels (of course customers can choose their own shipping forwarders).
We will recommend you the most suitable program according to your working condition.
+86 166 9219 0701
Room No. 1009,Xinyuan Financial Square,Jingsan Road,Zhengzhou City
Project country:
Singapore
Field:
Wind power generation
Equipment:
Industrial pipeline crawler camera
Project:
Wind power blade internal defect inspection
Project country:
Malaysia
Field:
Power plant
Equipment:
Pipe Inspection Camera
Project:
Check the hidden danger of water wall burst pipe
Project country:
Malaysia
Field:
Aluminium plan
Equipment:
Pipe Inspection Crawler Robot
Project:
Alumina pipe inside scar inspection
