GT102BPro CCTV Pipe Inspection Crawler Robot

GT102BPro CCTV Pipe inspection crawler robot
Suitable 6~98 inch pipeline
Auto focusing
4 MGP
Inspection report system

Screen Size

12 inch

Resolution

2560*1600

Screen material

Tablet controller

Application

Suitable pipe diameter: 130-1500mm

Storage

128G

camera len

360° endless rotation,220° flip,10 times zoom in and out

Report

Support report system

Other

N+1 Multifunction pipe crawler camera

Products Introduce

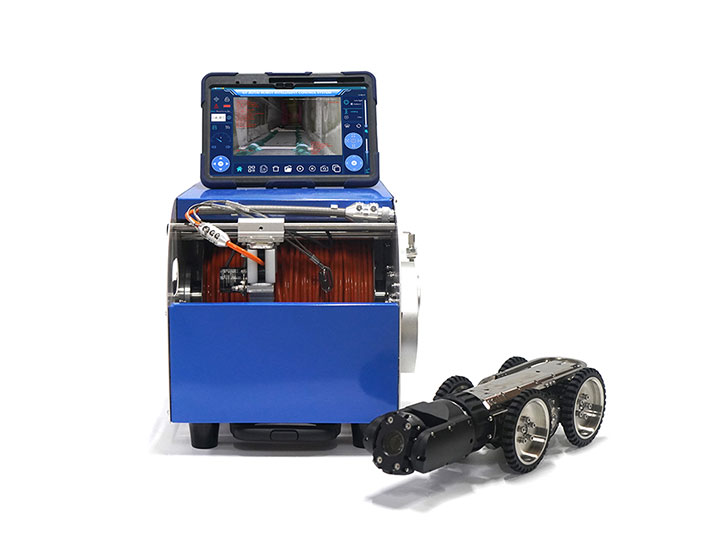

Jiutai GT102BPro CCTV Pipe inspection crawler robot supports HD front and rear dual-view images. Equipped with a 12 inch screen portable intelligent tablet, auxiliary powerful lighting source and meter cable device, auto electric wire barrow. This CCTV inspection crawler robot can enter the internal pipeline for video recording, defect capture, 10 times auto zoom in and out, record defect location information. Generate inspection reports system in real time.

Application

GT102BPro CCTV pipe inspection crawler robot for pipe inspection is widely used in the internal video inspection of petrochemical pipelines, gas pipelines, Building pipeline, Municipal engineering pipelines, industrial pipeline, garden pipelines, Nuclear power plant pipeline, Electric power chemical pipeline, The food and beverage industry, air separation pipelines, and other large space containers.It can comprehensively inspect the hidden dangers of deposits, blockage, damage, corrosion, deformation, etc. inside the pipeline。

Range:150mm-2500mm

Length: 100m(standard)-customized

Pipe Crawler Robotic Camera records and displays the conditions inside the pipe on a monitor screen. This facilitates effective observation, inspection, quick data analysis, and diagnosis by working personnel. Inspection report system.

Feature

10 times auto zoom in and out function , not limited by space size.

Six-wheel drive

Camera Pixel:4 megapxiel ,HD camera to restore details.

Front and rear double Camera.

Equipped with high brightness LED lighting source.

Accurate meter meter device to assist in judging the location of defects.

Real-time annotation , and timely recording of defect information.

12 inch screen , resolution 2560*1600.

N+1 Multifunction pipe crawler camera

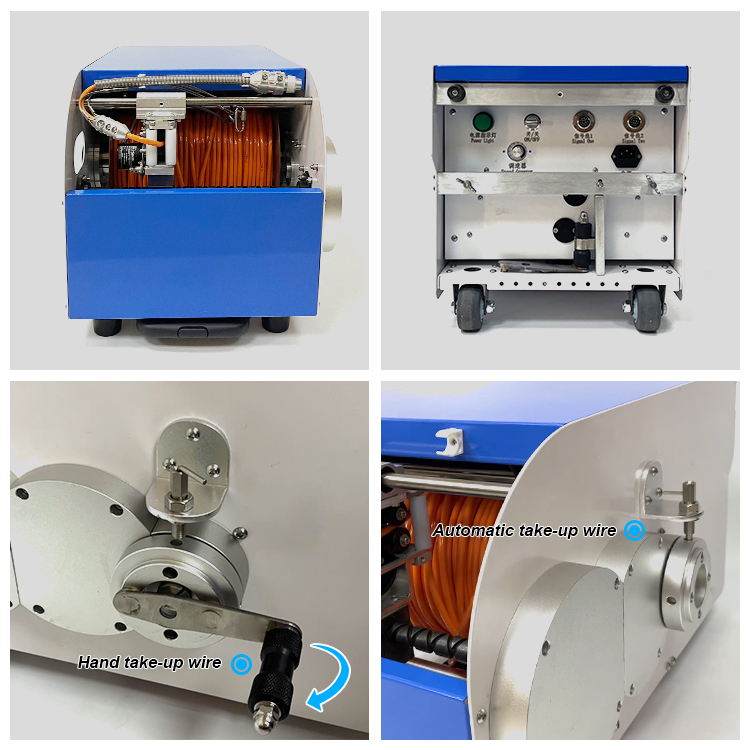

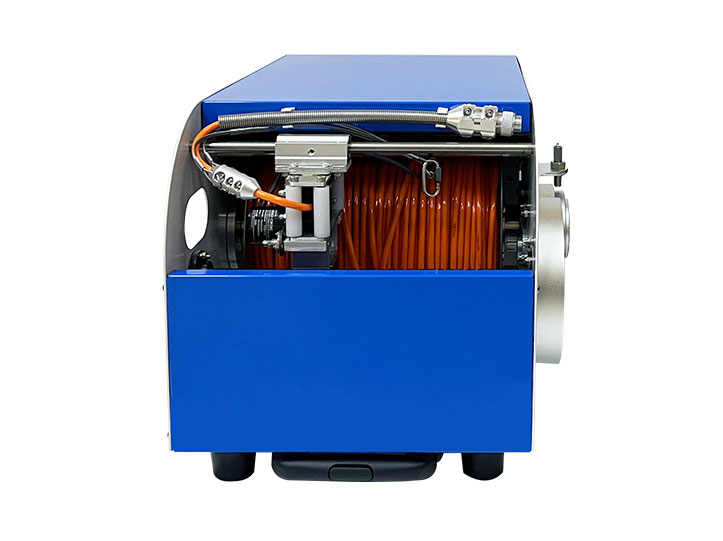

Portable electric wire barrow

Tablet controller,inspection report system

Support customized HDMI, 512HZ, Inspection report.

Parameters

Screen size12 inch
Resolution2560*1600
Screen materialIPS HD the full view screen
LanguageEnglish,Spanish,Russian,French
Keyboard Standard
Display  characterMeter counter
Slope
Storage U disk
Storage capacitySupport 1TB
Video output interface 1HDMI
Special functionLens reset function, meter clear zero, protection remove function
Weight6KG

Machine Parts

Machine Parts Of GT102BPro CCTV Pipe Inspection Crawler Robot:

Screen size: 12 Inch tablet
Weight: 610g
Resolution: 2560*1600
Memory: 128GB
Data transmission: Wireless transmission
Endurance: 8h

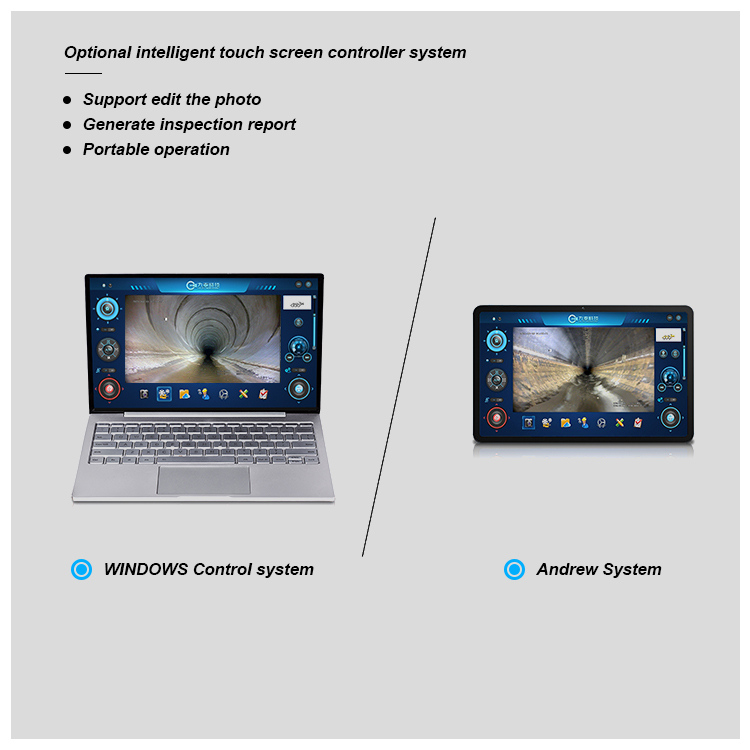

Tablet : It can control the crawling to move forward, backward, turn, automatic cruise, adjust the speed, switch the lens, adjust the focus, rotate the head, take pictures and video, record defects, and remove fog.
Display: real-time display of climbing Angle, walking distance, inspect orientation.
Report software: generate inspection report with one click, support Chinese and English input and output, including project name,video, defect location and analyze.

cctv pipe inspetion camera system

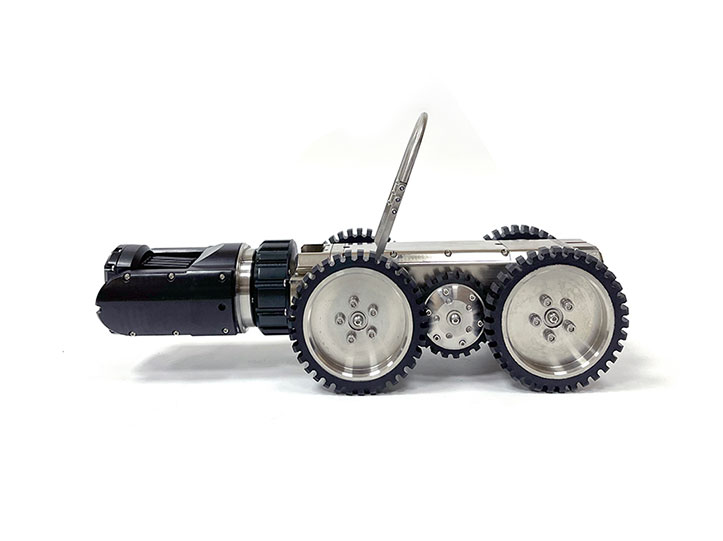

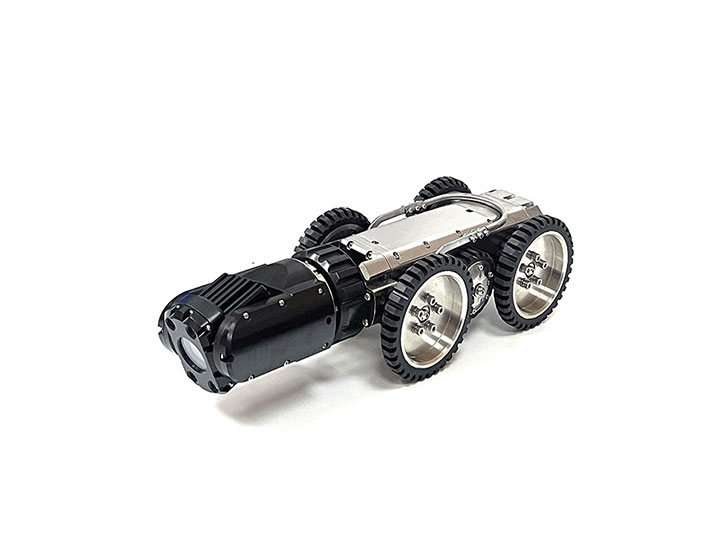

Pipe Inspection Crawler Robot

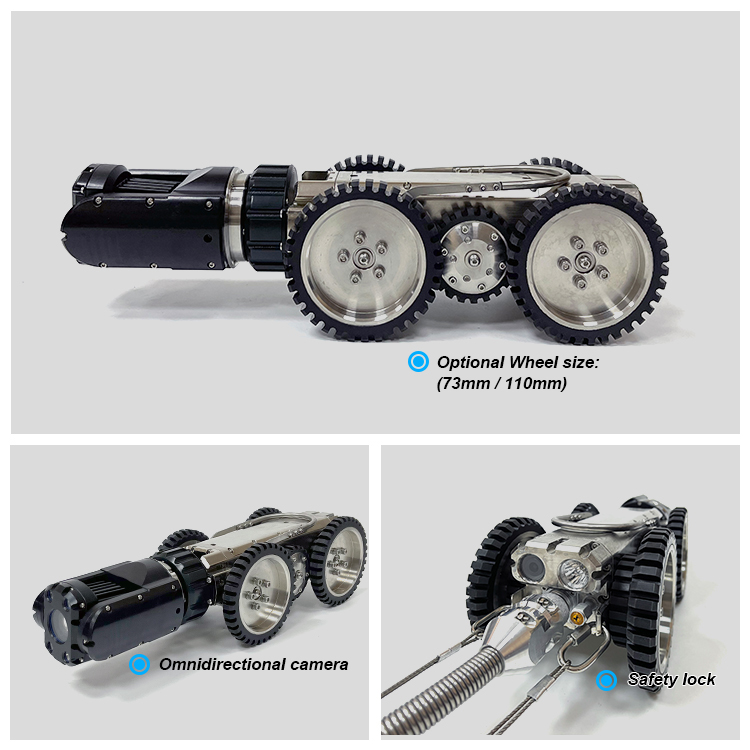

Body size: 486×170×110mm (110mm wheels)
Suitable diameter: 150-2500mm
Wateroroof: IP68
Front lens: 10x (optical and electronic)
Lens pixels: 4 million pixels; Resolution :2560×1600
Number and brightness of front lens light 4 / multi-stage adjustable (above 200000LUX)
Multi-stage adjustable illumination of rear view light (60000LUX)
Fast speed: 16m/min Slow: 13.6m/min (110mm wheels) Fast: 10.8m/min Slow: 8.16m/min (73mm wheels)
Ambient illumination: 180000LUX

Size: 642×424×372mm (including wheels and rod)
Weight: 45KG (including power module)
Cable length: 120m standard-customized
Cable material: Professional flexible Kevlar cable, tensile force 150Kg, waterproof, oil resistant and wear-resistant

Pipe Inspection Crawler Robot

Comparison of CCTV Pipe Crawler Camera System

GT108GT102B    GT102A
Working length300m150m    150m
Min/Max Pipe Diameters200-3500mm(8”-137”)150-2000mm(6”-78”)120-600mm (5”-24”)
Waterproof   IP68 IP68 IP68
Front camera  Pan Tilt Zoom auto focusPan Tilt Zoom auto focusPan-and-tilt auto focus
Rear-view camera   YesYesYes
Camera Lens     360°rotate  220°flip
Electric Lifting
360°rotate  220°flip360°rotate 220°flip
pixel1920X1080 /2560X16001920X10801920X1080
Extra FeaturesInclinometer, Inspection Report, Wheels of different dia. Laser(optional

If you have specific inspection requirement,please contact with us . we can offer you the most sutiable pipe solution according to your working condition
