GT104w CCTV Sewer Robotics Camera
Suitable 6~98 inch pipeline
Auto focusing
4 MGP
Inspection report system
Support 200m cable
12 inch
2560*1600
Tablet controller
Suitable pipe diameter: 150-2500mm
128G
360° endless rotation,220° flip,10 times zoom in and out
Support report system
Electric lifting

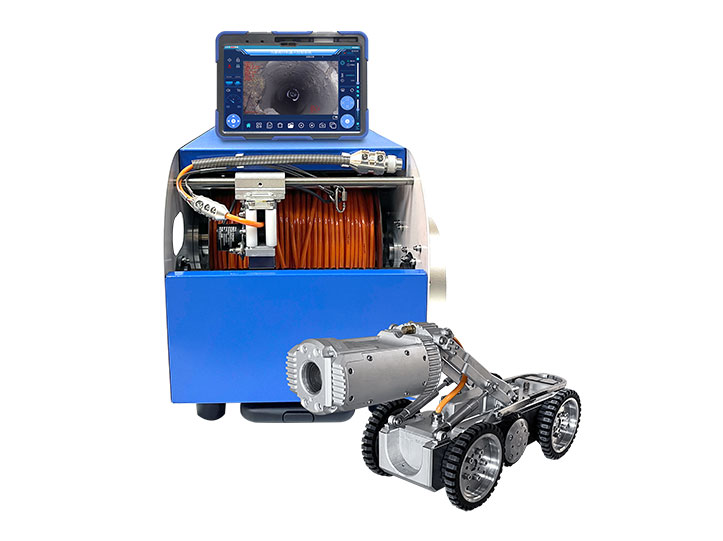

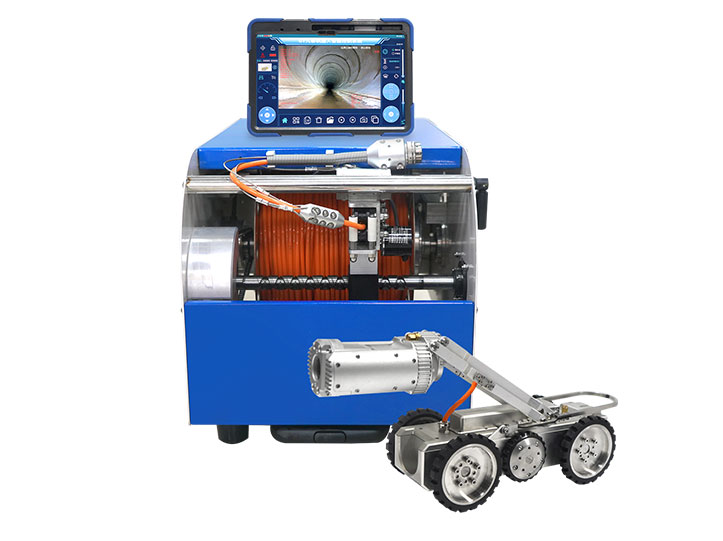

Jiutai GT104W Electric Lifting CCTV Sewer Robotics Camera is an ultra HD front and rear dual-view NDT inspection Camera. The robot uses a portable tablet control, powerful lighting source and electric wire barrow. It can 360° all-round inspection of deposition, clogging, damage, corrosion, deformation, etc. of pipelines. Super obstacle and climbing ability, Easy to move.
The sewer robotics camera is suitable for 150mm pipe inspect, cable length can customized 200m. The system has built-in defect interpretation software, which can automatically identify defects such as cracks, deformation, blockage, and rupture inside the pipe according to working conditions, and generate pipeline inspection report in real time, rapid analysis and decision-making. GT104W Pipe Crawler Robotic Camera for pipe inspection is widely used in the internal video inspection of Sewage pipe, petrochemical pipelines, gas pipelines, Building pipeline, Municipal engineering pipelines, industrial pipeline.
Range:150mm-2500mm
Length: 100m(standard)-200m(customized)
10 times auto zoom in and out
Six-wheel drive
Camera Pixel:4 megapxiel ,HD camera to restore details.
Front and rear double Camera.
Equipped with high brightness LED lighting source.
Accurate meter meter device to assist in judging the location of defects.
Real-time annotation , and timely recording of defect information.
12 inch screen , resolution 2560*1600.
One click defog, lens reset
Portable electric wire barrow
Tablet controller,inspection report system
Wireless transmission.
| Screen size | 12 inch |
| Resolution | 2560*1600 |
| Screen material | IPS HD the full view screen |
| Movement | Wheeled |
| Light source | 4 PCS/multistage adjustable (180000LUX) |
| Display character | Meter counter |
| Slope | |
| Endurance | 8h |
| Storage capacity | Support 1TB |
| Video output interface 1 | HDMI |
| Special function | display the climbing Angle, walking distance, defect orientation and generate inspect curve in real time |
| Weight | 15KG |
Machine Parts Of GT104W CCTV Sewer Robotics Camera:
Screen size: 12 Inch tablet
Weight: 610g
Resolution: 2560*1600
Memory: 128GB
Data transmission: Wireless transmission
Endurance: 8h
Tablet : It can control the crawling to move forward, backward, turn, automatic cruise, adjust the speed, switch the lens, adjust the focus, rotate the head, take pictures and video, record defects, and remove fog.
Display: real-time display of climbing Angle, walking distance, inspect orientation.
Report software: generate inspection report with one click, support Chinese and English input and output, including project name,video, defect location and analyze.

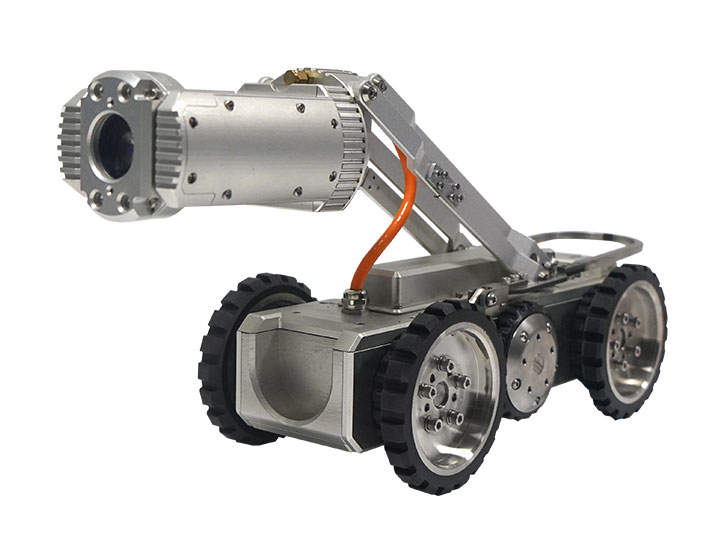

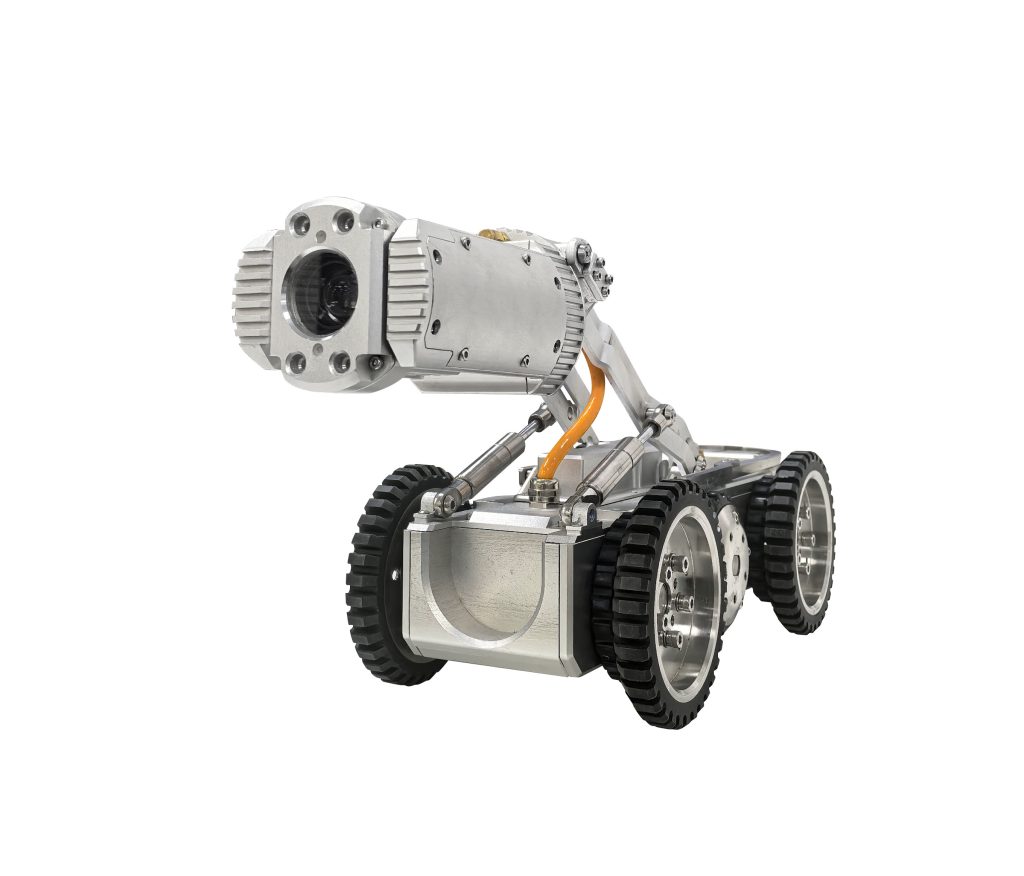

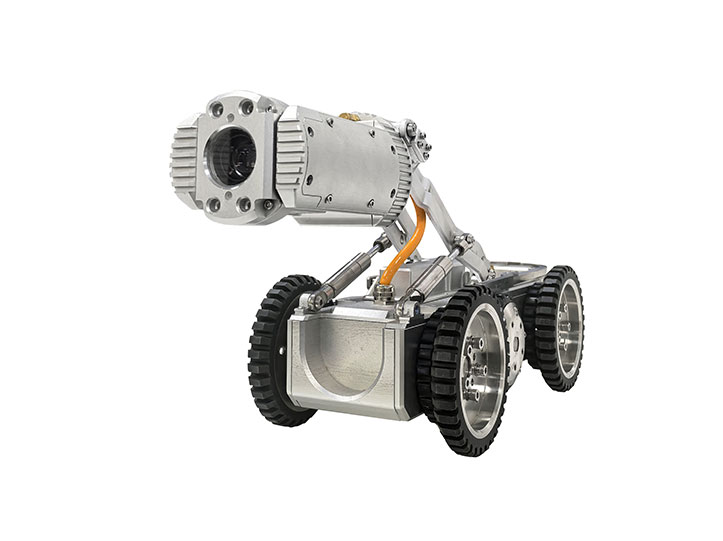

Body size: 600×110×180mm
Suitable diameter: 150-2500mm
Wateroroof: IP68
Front lens: 10x (optical and electronic)
Lens pixels: 4 million pixels; Resolution :2560×1600
Number and brightness of front lens light 4 / multi-stage adjustable (above 180000LUX) Lens lifting height：180mm±10mm
Size: 360×310×340mmmm (including wheels and rod)
Weight: 19KG (including power module)
Cable length: 120m standard-customized
Cable material: Professional flexible Kevlar cable, tensile force 150Kg, waterproof, oil resistant and wear-resistant Count meter
 GT108 |  GT102B |  GT102A | |
| Working length | 300m | 150m | 150m |
| Min/Max Pipe Diameters | 200-3500mm(8”-137”) | 150-2000mm(6”-78”) | 120-600mm (5”-24”) |
| Waterproof | IP68 | IP68 | IP68 |
| Front camera | Pan Tilt Zoom auto focus | Pan Tilt Zoom auto focus | Pan-and-tilt auto focus |
| Rear-view camera | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip Electric Lifting | 360°rotate 220°flip | 360°rotate 220°flip |
| pixel | 1920X1080 /2560X1600 | 1920X1080 | 1920X1080 |
| Extra Features | Inclinometer, Inspection Report, Wheels of different dia. Laser(optional | ||
We are professional manufacturer of cctv pipe inspection camera system with lots of years R&D and market research experience.The price is competitive and after-sales is guaranteed
Pipe inspection borescope camera,CCTV Sewer crawler robotic camera,Videoscope camera,Portable Push rod camera,Explosion-proof Container Inspection Camera,Borehole camera,Manhole Camera,Sewer cleaning manchine, Pipeline NDT repair .
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
We will recommend you the most suitable program according to your working condition.
