GT200BX60 Manhole Pole Camera

Products Introduce

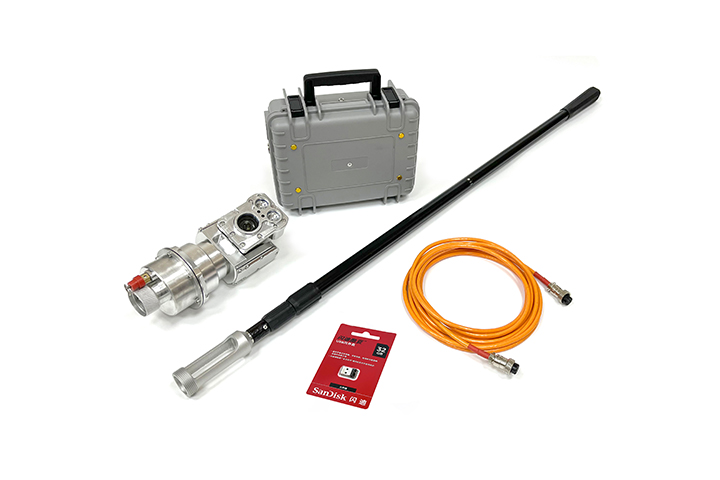

GT200BX60 manhole pole camera features an HD PTZ camera and a telescopic rod ranging from 2 to 5 meters (customizable). With its intelligent control system, it offers clear visibility of internal details and working conditions. This video inspection camera is designed with anti-explosion PTZ capabilities and meets IP68 waterproof standards, making it suitable for detecting large spaces and complex working conditions with special media.

Application

GT200BX60 Explosion-proof inspection robot for oil pipe

GT200BX60 anti-explosion manhole pole camera is primarily utilized for swift visual inspections and diagnostic assessments of the internal conditions within industrial containers, tanks, or pipelines.

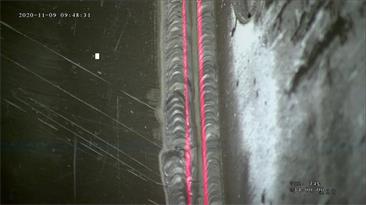

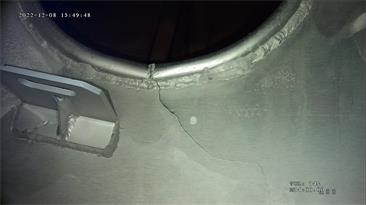

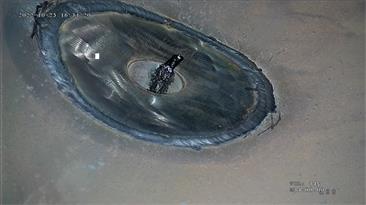

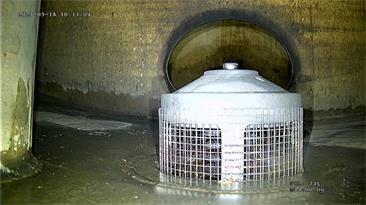

During inspections, it can capture and store internal images of the tested object. It also facilitates rapid retrieval of saved defect images, supports on-the-fly editing of working conditions via keyboard input, and enables real-time transmission of both photos and videos.

Range:120mm-10000mm

Feature

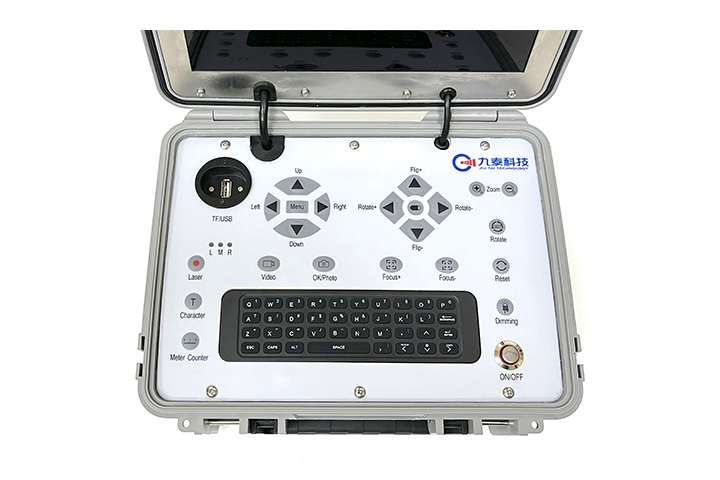

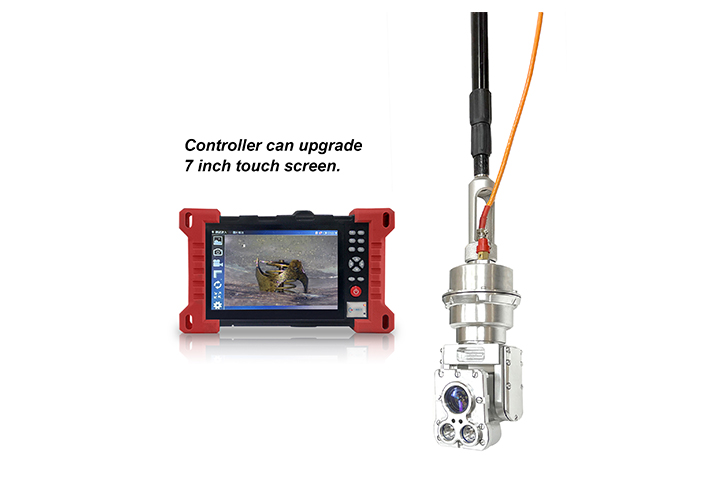

10 inch color controller .Cold LED , adjustable brightness .

10 times zoom,automatic focusing.

Axial 360°rotate endless ,radial 180° reversal , no dead-angle.

Strong corrosion resistance, Convenient to assembly and dis-assembly,easy to carry .

Lasermeasurement.

Self contained power supply , no need AC , inspect at any time.

Splash-proof design,IP 66.Lens can matched with protection cover, thus can Increase working life, protect lens from abrasion.(custom made waterproof IP68).

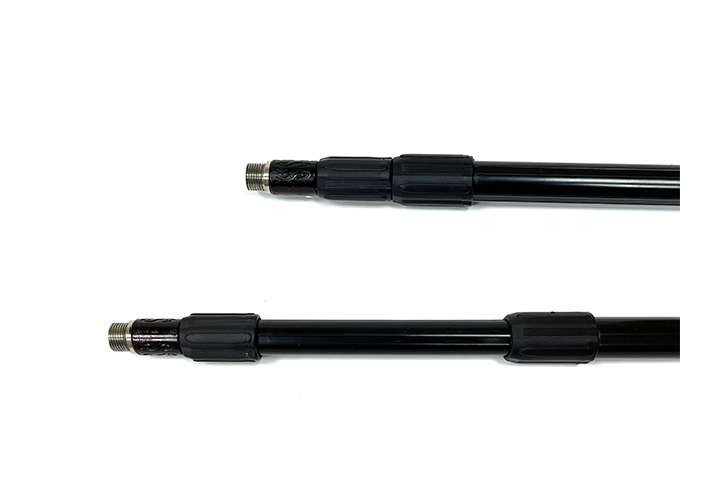

Push rod flexible .The equipment is portable,easy to carry.

Patented products, more secure and efficient for detection.

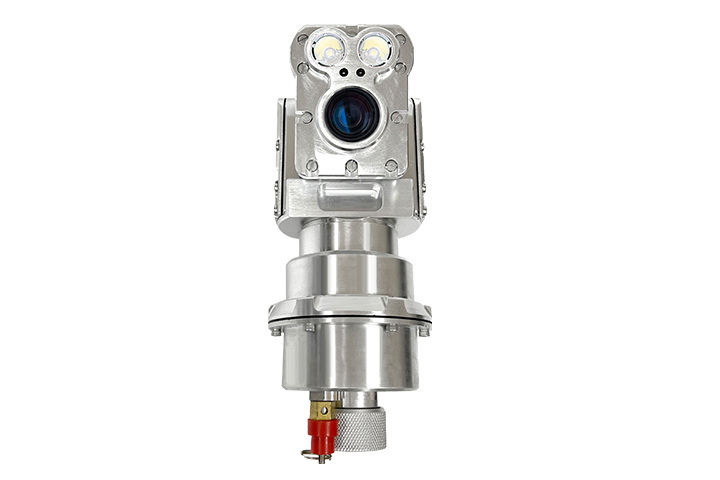

HD,wide viewing-angle , zoom and focusing camera.

Parameters

Screen Size	10 inch color screen
Camera Type	CCD
Horizontal resolution	2 megapixel
Camera lens Diameter	105mm
Rotate Model	360° Infinite rotating，180°flip
Zoom	10 times optical,10 times electronic
LED Lights	6 LEDS
