GT220 Drain Push Rod Camera
10 inch IPS screen
49mm,37mm,21mm,16mm,10mm
18~400mm
Megapxial or customized
360 degree endless rotation
IP68

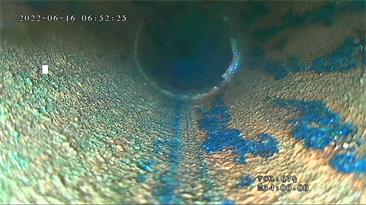

Jiutai GT220 sewer inspection camera is an ultra-portable box-type HD pipe inspection camera, that supports inspecting the inside of underground sewer pipes network, drain pipe, containers, boilers,etc. This pipe inspection cameras are equipped with 360-degree panoramic camera or small diameter front-viewing lens, which supports a wide range of video inspection. Besides, the pipe inspection camera supports various camera diameters, captures photos,videos and recording, enables real-time quick snapshots, and marks the location information of defects within the pipeline.
HD Image, Portable Efficient,integrated. Support Customized, New recording function

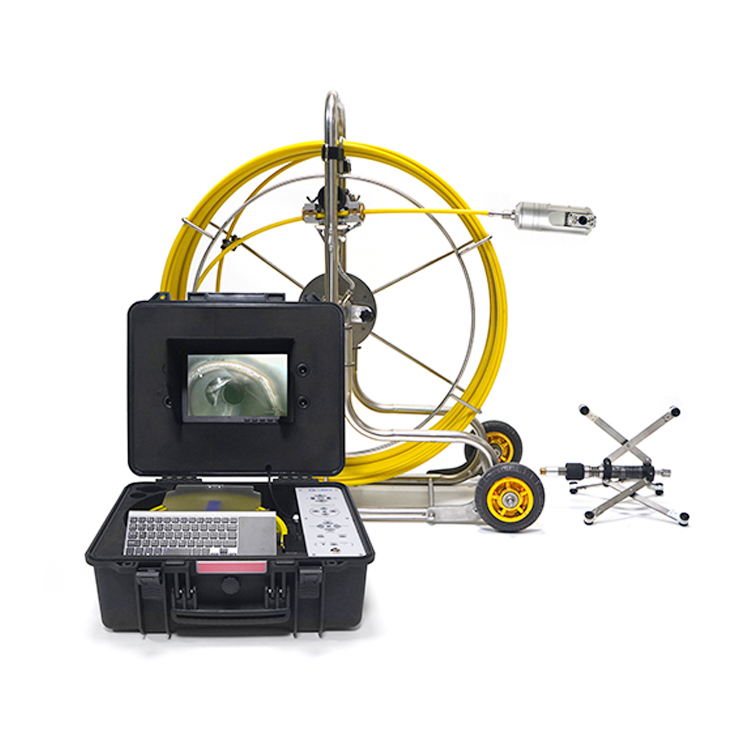

GT220 sewer pipe inspection camera is designed for Industrial NDT inspection and features high resolution, 16mm, 21mm, 37mm, and 51mm camera lens optional, a 10 inch LCD monitor with DVR, a 20m/66ft ~ 100m/330ft cable reel that is rotatable itself in the case, a heavy-duty case that all parts included, etc.
Unique spring body design is suitable for internal inspection of pipes with many bends.
This pipe inspection push camera is widely used in pipelines, drains, sewers, ducts, chimneys, machinery, and building inspection.

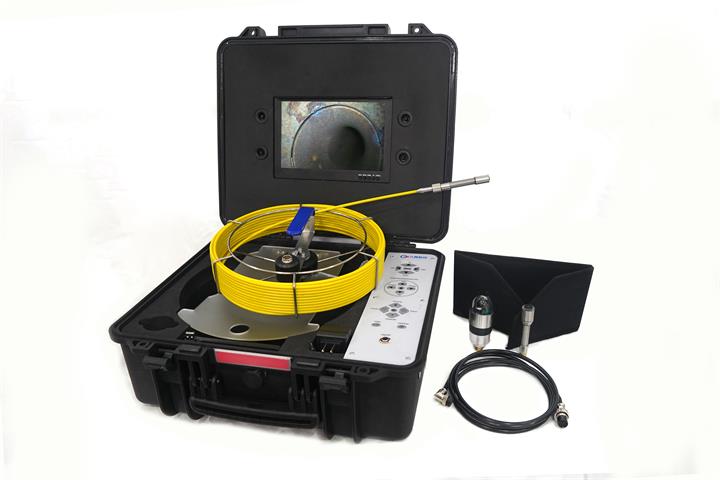

Portable all in one pipe inspection camera.

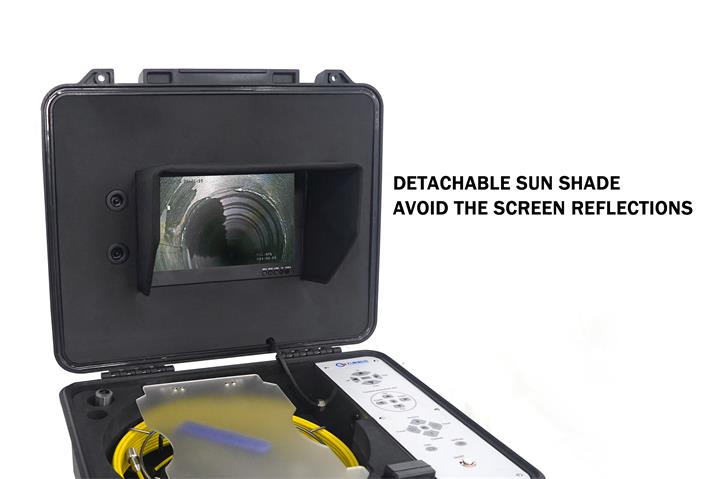

10 inch IPS screen.
16mm, 21mm,37mm,51mm lens optional.
Meter counter, easy to determine the location of defects.
512HZ is customized.
With keyboard, can edit in real time.
Inspection Range: 20mm-400mm
Industrial pixel: 1000000
| Screen | 10 inch IPS screen |
| Camera Dia | 51mm,37mm,21mm,16mm |
| Inspection range | 20~400mm |
| Industrial pixel | Megapxial or customized |
| Rotate | 360 degree rotation endless |
| Flip | 220 degree flip |
| Waterproof | IP68 waterproof |
 Gt220 |  GT230 |  GT31dv | |
| Working length | 20-100m | 10-120m | 10-30m |
| Min/Max Pipe Diameters | 20-400mm | 7-800mm | 10-200mm |
| Waterproof | IP68 | IP68 | IP67 |
| Camera | Pan Tilt | Pan Tilt | Wide angle view |
| Video, Picture | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip | 360°rotate 220°flip | / |
| Pixel | 1920X1080 | 1920X1080 | 1024X600 |
| Other | Customized | ||

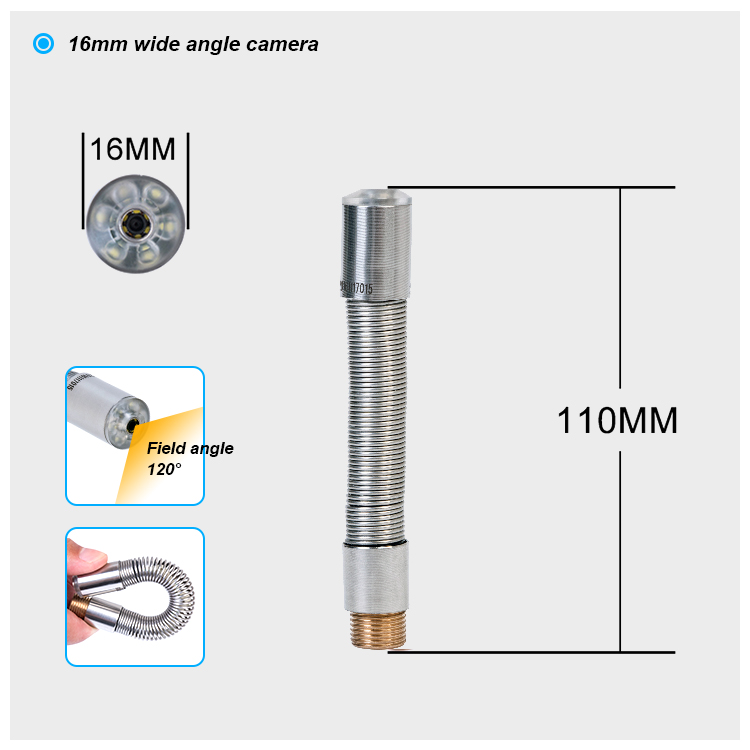

16mm camera len:
Flexible camera
Field angle 120°
suitable for internal inspection of pipes with many bends.
Cheap Price

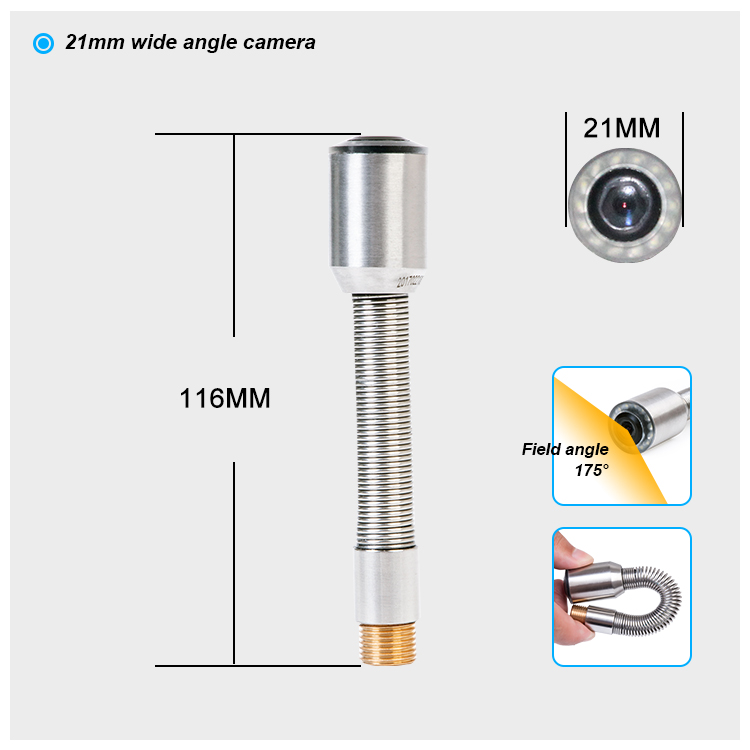

21mm:
front-view camera
field angle 176°
Waterproof IP68
megapixel
Flexible camera

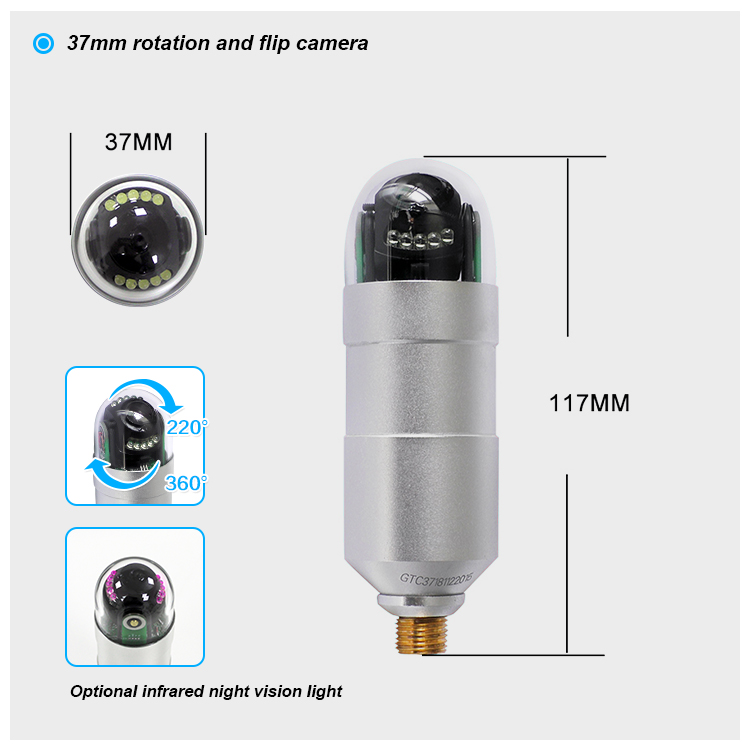

37/51mm:
360 degree rotate camera
220 degree flip
electric focusing
IP68 Waterproof
Optional infrared night vision light
