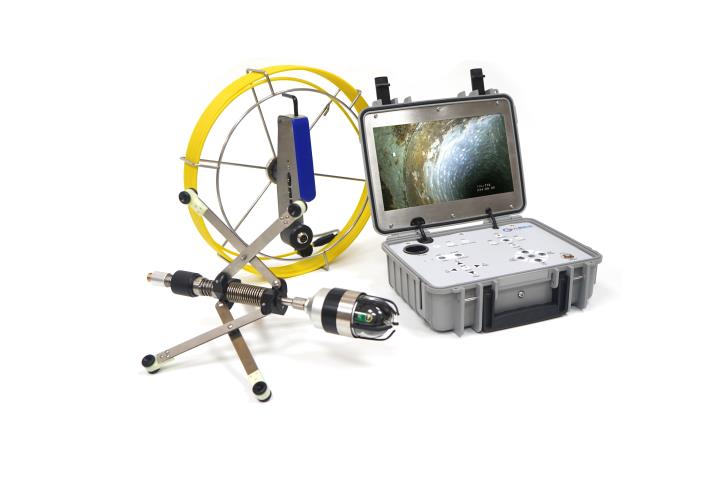

GT230 Sewer Pipe Inspection Camera
10’’ color LCD
1920*1080
adjustable
16G~1TB
Megapixel
IP68

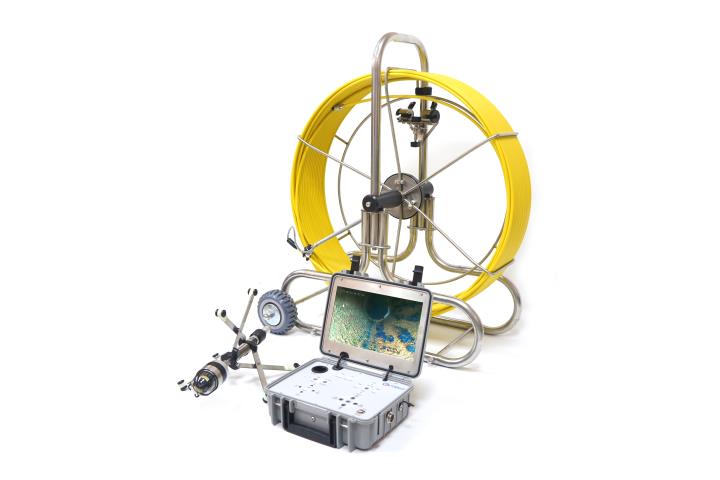

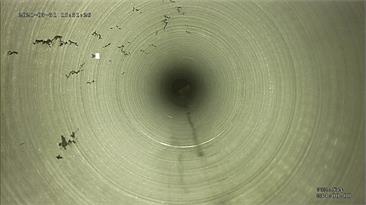

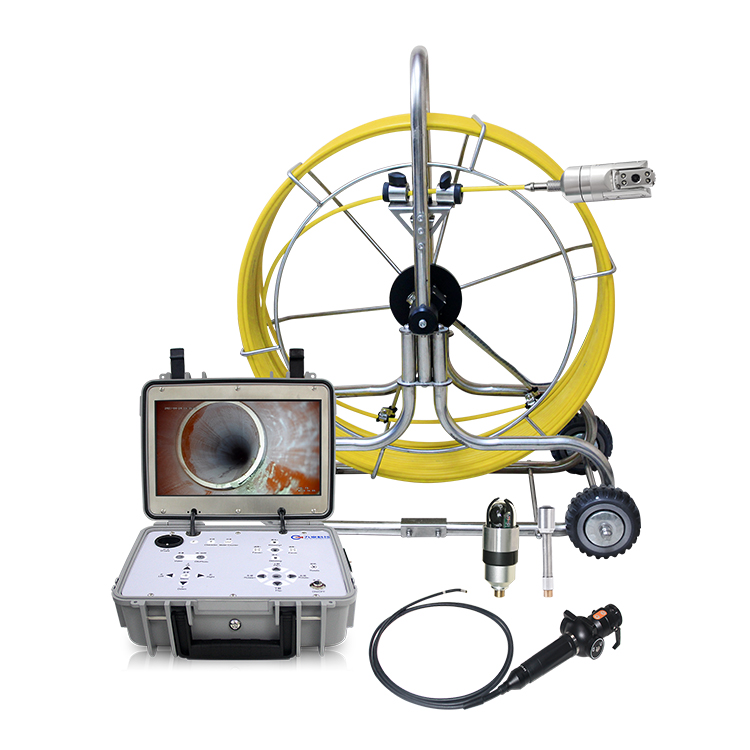

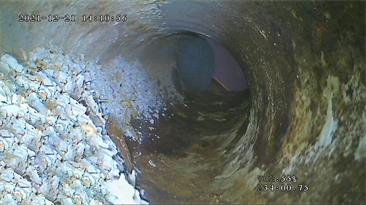

Jiutai GT230 sewage pipe inspection camera is an multifunction ultra-HD pipe inspection camera, This pipe inspection cameras are equipped with 360-degree panoramic camera or small diameter front-viewing lens, which supports a wide range of video inspection. The 5.5 smaller camera also can go into the thinner drain or sewer pipe, which is easy for all kinds of complex conditions. Besides, captures photos and videos, enables real-time quick snapshots, and marks the location information of defects within the pipeline.
Sewage pipe inspection pan tilt cameras are used in different working conditions, that supports inspecting the inside of underground sewer pipes network, oil and gas pipeline, construction pipeline, engine duct ,etc. and other hard-to-see areas.
Our GT230 sewer drain pipeline inspection video camera is specifically designed, making it easier for plumbers, contractors, inspectors, engineers, municipal workers, and other professionals to inspect the areas that are normally to be solved.
The pipe inspection camera is usually for pipe diameters from 7~800 mm according to different cameras.
(51mm,37mm,28mm,16mm,5.5mm, camera is optional.)
Has a number of patented, using German imported technology.
Portable, suitable for single operate in complex occasions, AC /DC is okay.

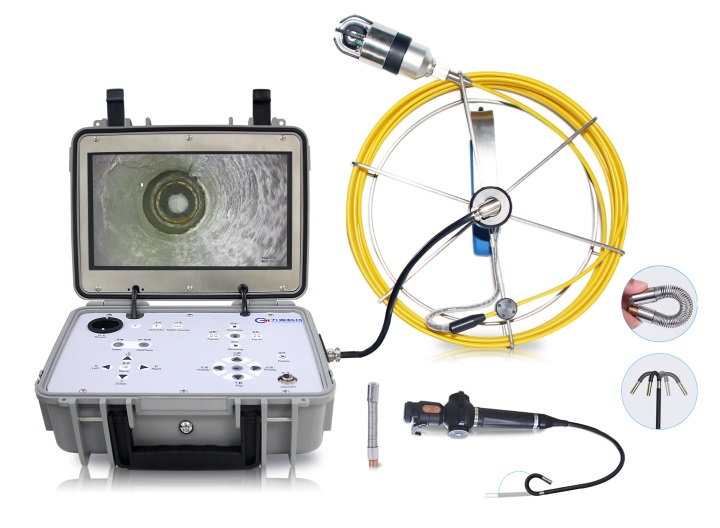

Replaceable lens , 51/37/28/16/5.5mm, Multifunction.
The optical zoom of lens, make the inspection more precision.(Patent)
360° rotate endless, 220° flip, make inspection no dead angle.
Nine-level lights are adjustable. Cold LED light .(Patent)
He viewing angle of the Wide-angle camera is larger ,relative to the equipment. Also support electrical focus.(Patent)
Self contained power supply, no need AC, inspect at any time.
Video,photo can be set at will, easy to use.
IP68 waterproof grade, up to 10m.
2MGP optional
10 inch controller, real-time editing.
| Screen Size | 10’’ color LCD |
| Resolution | 1920*1080 |
| Continuous working time | 4-5 hours without AC |
| Brightness | adjustable |
| Memory card | 32G~1TB |
| Indsutrial pixel | Megapixel |
| Waterproof | IP68 |
 GT220 |  GT230 |  GT31dv | |
| Working length | 20-100m | 10-120m | 10-30m |
| Min/Max Pipe Diameters | 20-400mm | 7-800mm | 10-200mm |
| Waterproof | IP68 | IP68 | IP67 |
| Camera | Pan Tilt | Pan Tilt | Wide angle view |
| Video, Picture | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip | 360°rotate 220°flip | / |
| Pixel | 1920X1080 | 1920X1080 | 1024X600 |
| Other | Customized | ||

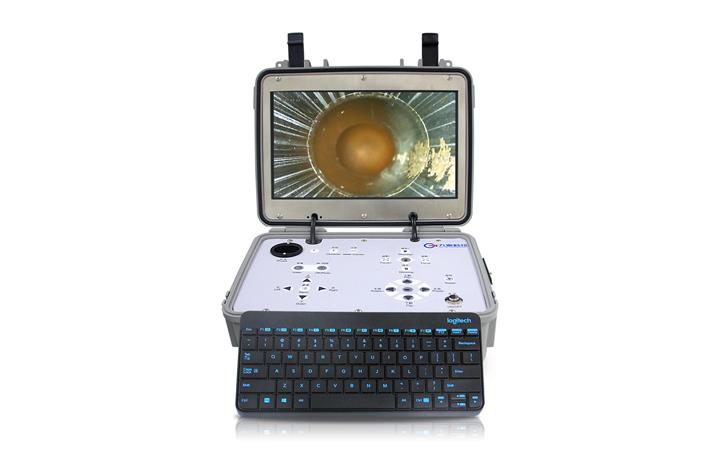

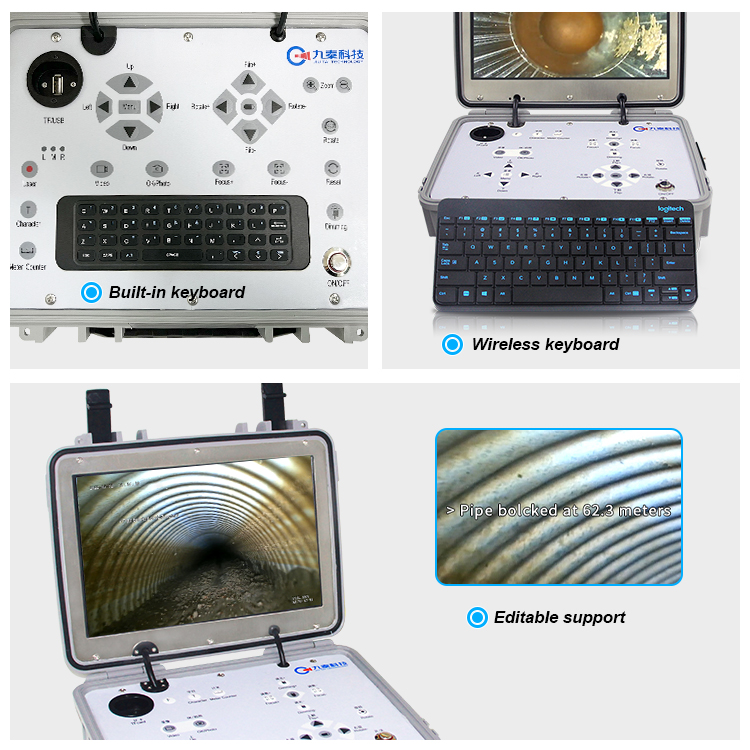

Controller:
Simple Operation, complete functions, real-time recording,Box operation more portable
Waterproof 10.1"HD DVR control unit
1920X1080 resolution
HD DVR SYSTEM ,Audio ,video and screen capture function
USB wireless Keyboard,USB port to connect storage device
Charging time 7 hours, Working time about 6 hours

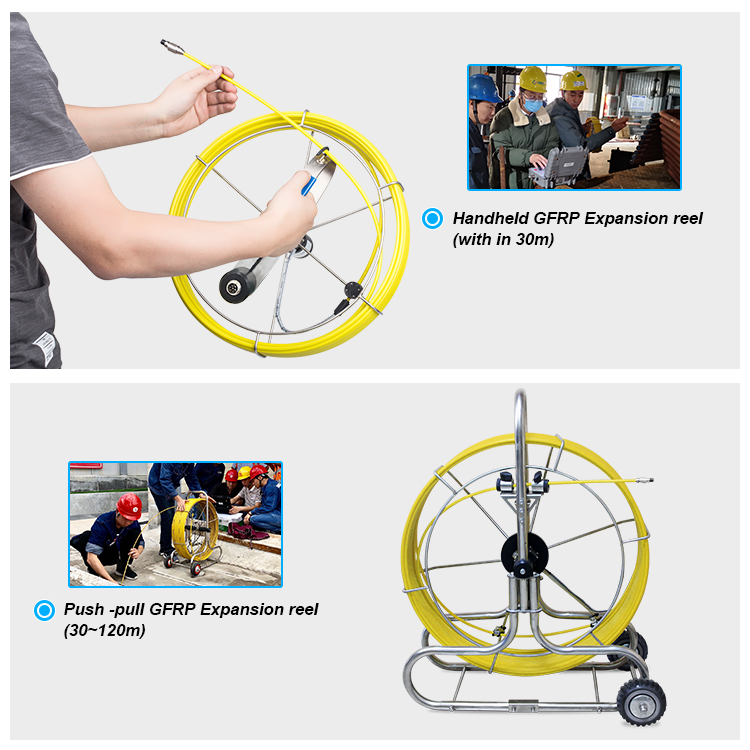

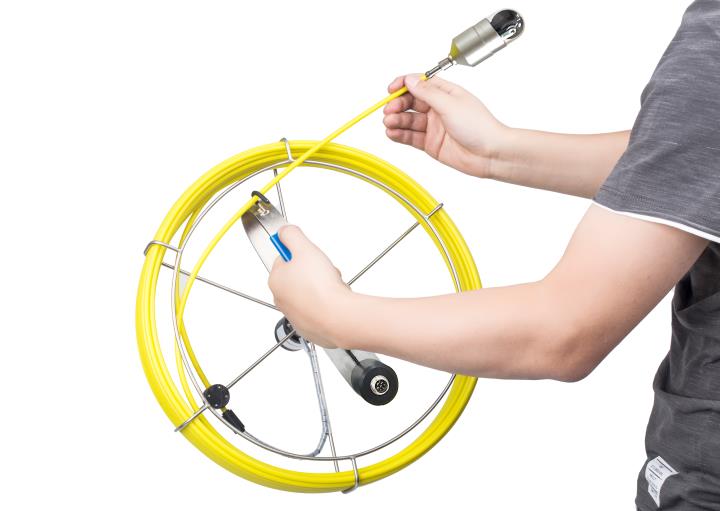

Cable Reel
* Fibreglass push rod cable
* Cable diameter 7mm
* Cable length 10m to 120m
* Meter counter function
* Counter display on the screen, saved on the video

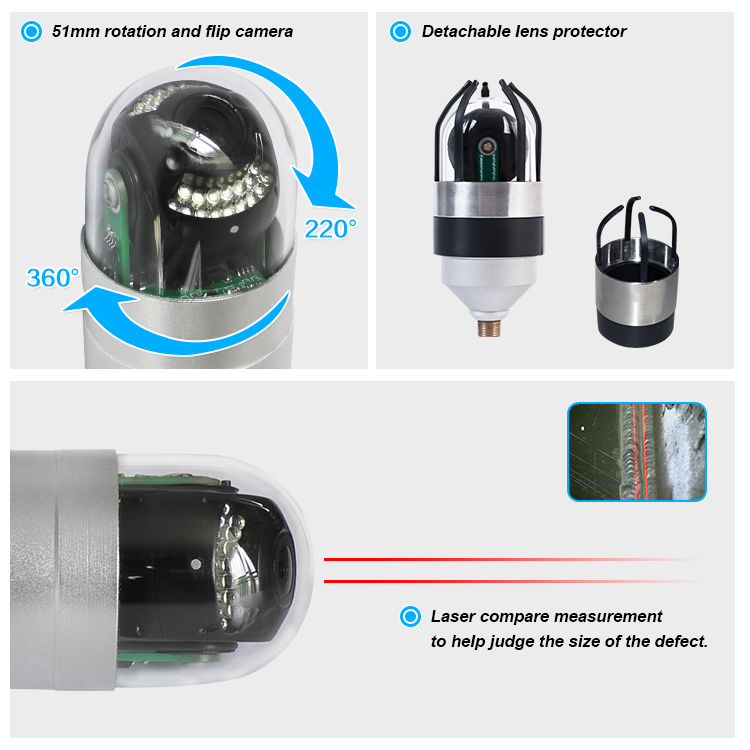

Camera lens:
51mm camera lens suitable 55-800mm pipeline
360 degree rotate endless, 220 degree flip
Laser compare measurement to help judge the size of the defect.
Free accessories: Simple centralizer
Contact us and get more detail.
We are professional manufacturer of pipe inspection camera system, Factory price!
Pipe inspection camera,CCTV Sewer crawler robot,Videoscope camera,Portable Push rod camera,Explosion-proof container camera,Borehole camera,Sewer cleaning manchine, Pipeline NDT repair
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
We will recommend you the most suitable program according to your working condition.
