GTDR-200 Vertical Pipe Inspection Robotic

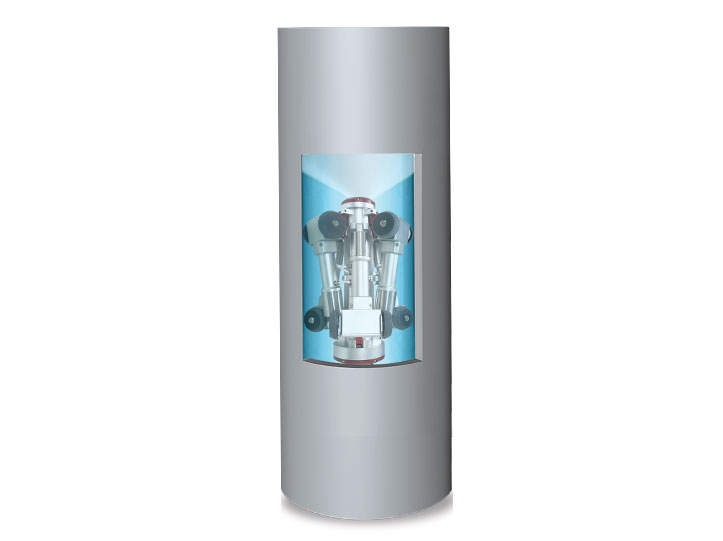

Horizontal and vertical inspection
HD pixel
Smart cornering
12 inch color LCD
2560*1600
Six lights can be adjusted
2 Megapixel
Count meter
Chinese, English, French, Spanish, Russian
IP68 Waterproof

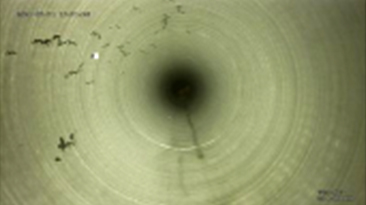

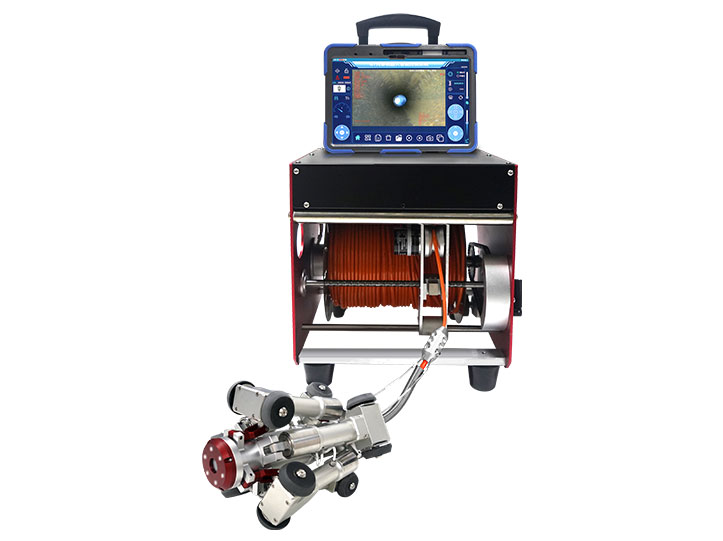

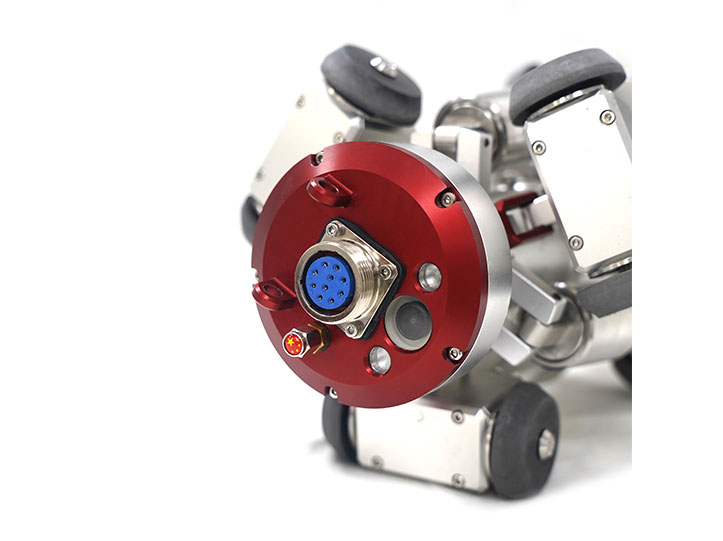

The GTDR-200 series crawling robot is composed of an intelligent tablet, retractable variable diameter crawler, HD panoramic visual sensor, and flexible cable. Through the panoramic lens, the inspection image and data are transmitted to the control in real time. It is suitable for more than 100mm pipeline working condition inspect, and timely records and archives defects such as cracks, corrosion, blockage, welds, foreign matter, etc. inside the working condition.
GTDR-200 vertical pipe inspection robotic camera is widely used in many fields, such as energy, power, petrochemical, technical supervision, aerospace, military, production and manufacturing, food and medicine Pipelines or containers.
GTDR-200 Series is suitable for 100-2500mm diameter pipes.

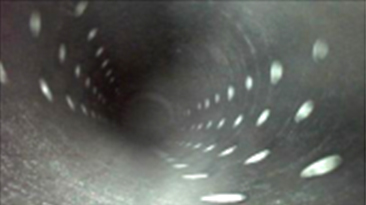

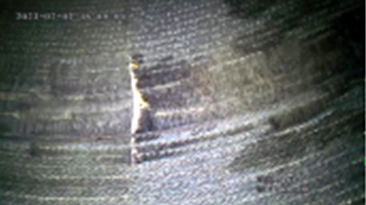

This vertical pipe inspection robotic camera for industrial pipes or containers inspects the cracks, defects, damage detection, block and so on.
IP68 Waterproof

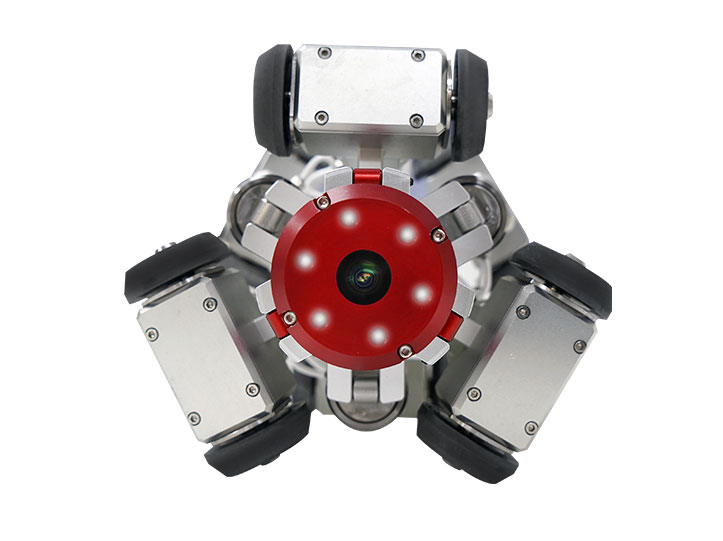

Automatically adapt size according to the pipe diameter

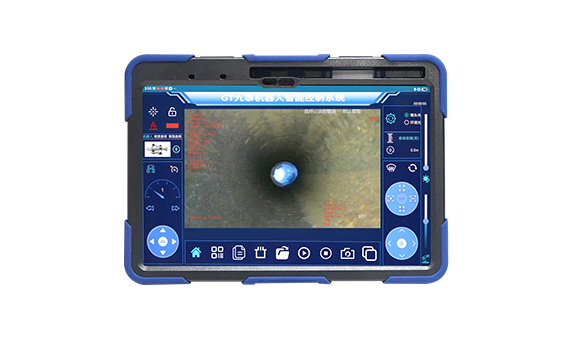

tablet control
2MGP
With ambient light and adjustable illumination.

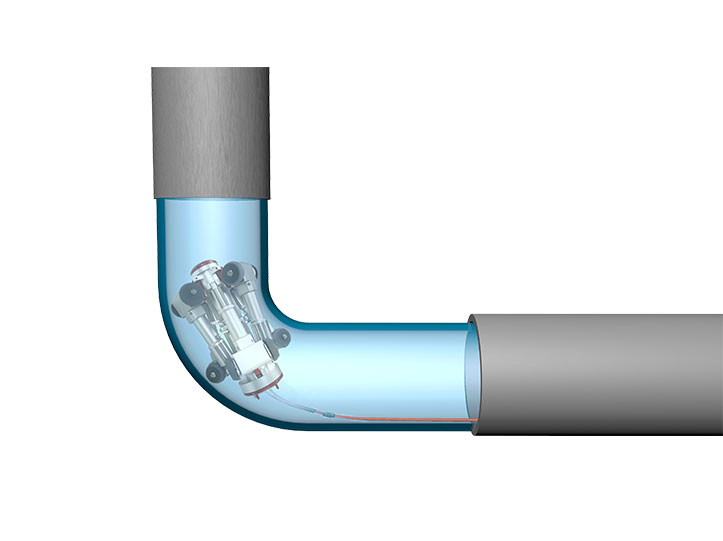

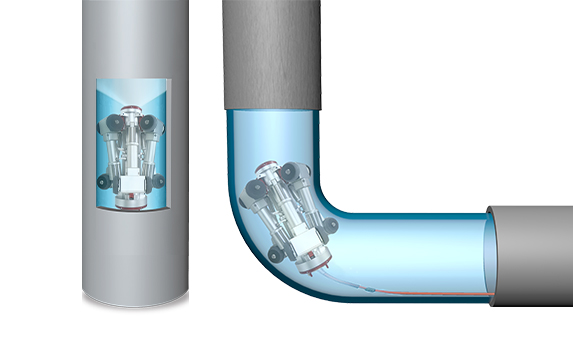

Supports two 1.5D radius turns of 90°
Support 100-300M Customized
Video,photo can be set at will.Max 1 TB.
HDMI, Inspection report.

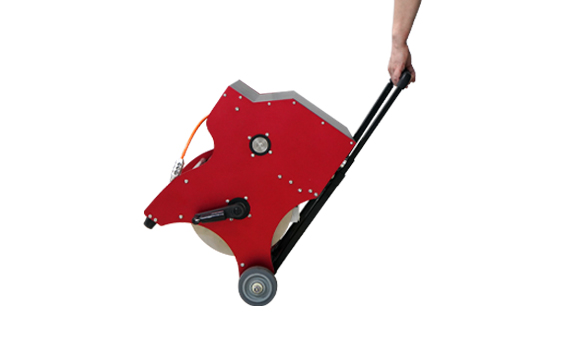

Electrical barrow, and the cable reel can be automatica .
Endurance: 5H
The machine is easy to clean, low cost maintenance.
| Screen Size | 12 inch color LCD |
| Resolution | 2560*1600 |
| Light Source | Six lights can be adjusted |
| Camera pixel | 2 Megapixel |
| Cable | Count meter |
| Waterproof | IP68 Waterproof |
| Function | Change diameter during walking. It can walk up and down and turn |
| Language | Chinese, English, French, Spanish, Russian |
 Gt108 |  GT102B |  GT102A | |
| Working length | 300m | 150m | 150m |
| Min/Max Pipe Diameters | 200-3500mm(8”-137”) | 150-2000mm(6”-78”) | 120-600mm (5”-24”) |
| Waterproof | IP68 | IP68 | IP68 |
| Front camera | Pan Tilt Zoom auto focus | Pan Tilt Zoom auto focus | Pan-and-tilt auto focus |
| Rear-view camera | Yes | Yes | Yes |
| Camera Lens | 360°rotate 220°flip Electric Lifting | 360°rotate 220°flip | 360°rotate 220°flip |
| pixel | 1920X1080 /2560X1600 | 1920X1080 | 1920X1080 |
| Extra Features | Inclinometer, Inspection Report, Wheels of different dia. Laser(optional) | ||

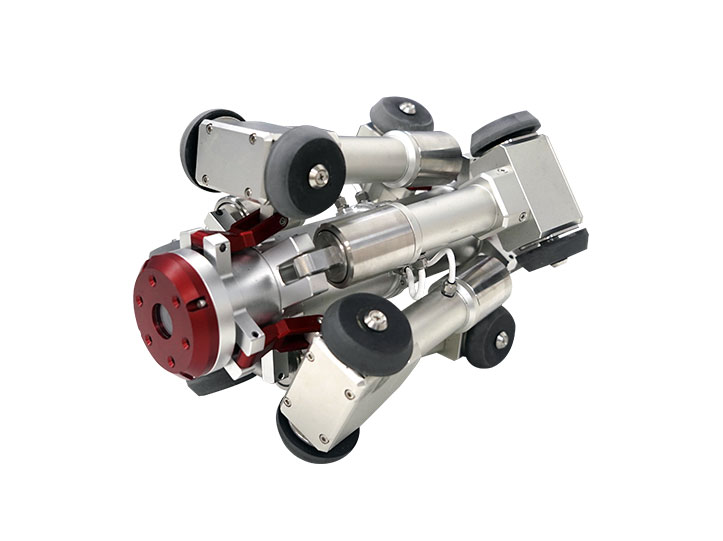

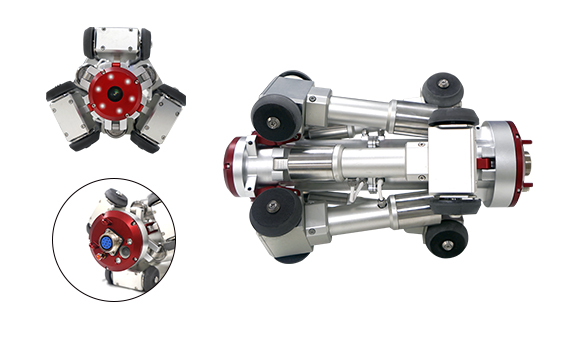

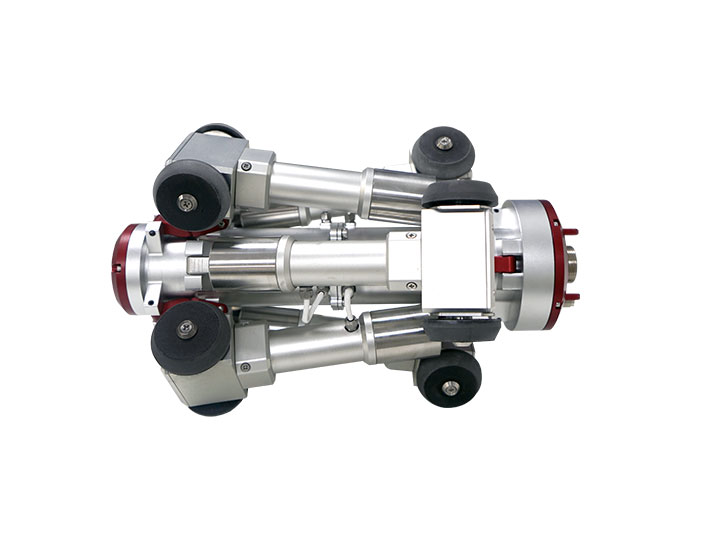

Machine Parts Of GTDR-200 Vertical Pipe Inspection Robotic Camera:
We are professional manufacturer in this field with lots of years R&D and market research experience.
Pipe inspection camera,CCTV Sewer crawler robot,Videoscope camera,Portable Push rod camera,Borehole camera,Sewer cleaning manchine, Pipeline NDT repair .
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
Around 3-10 working days according to exact order quality and stock situation.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Yes, we are, please contact our salesman for more details. We will protect and support you once you become our distributors and agents.
We will recommend you the most suitable program according to your working condition.
