GTV300 Borehole Camera

Products Introduce

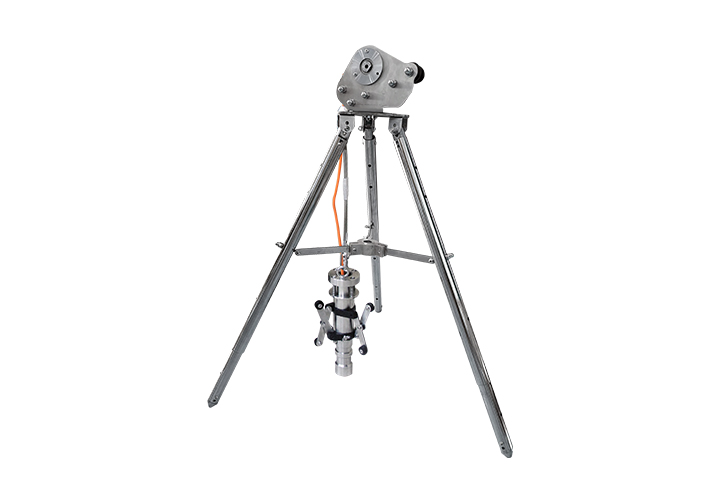

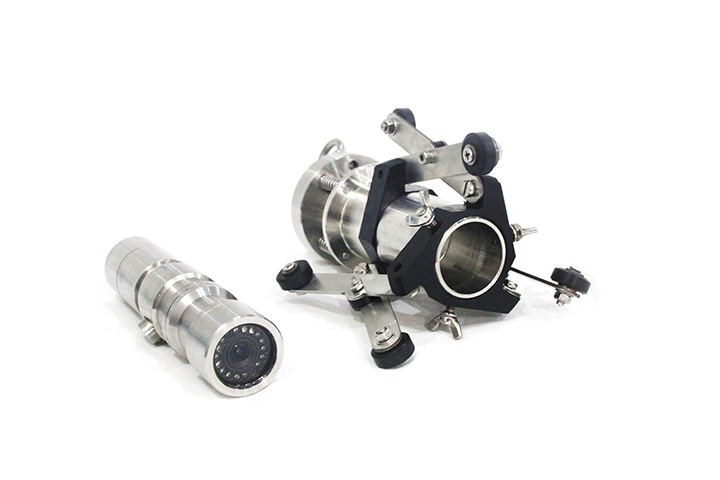

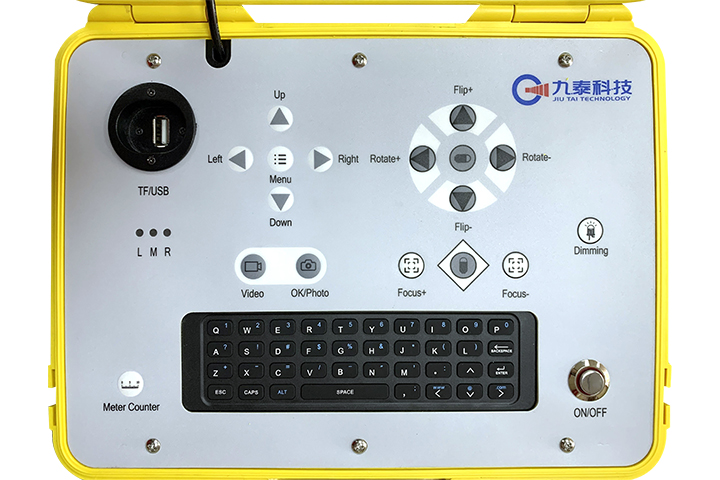

GTV300 borehole camera features a newly designed aluminum alloy shell and integrated structural design. It boasts a high-resolution display and a megapixel camera, supporting both wide-angle and 360-degree rotation capabilities. Additionally, it comes with an electric wire reel for added convenience. Portable and user-friendly, it ensures easy operation. Borehole cameras are essential for inspecting deep wells and boreholes in inaccessible areas, providing crucial insights during underground inspections.

Application

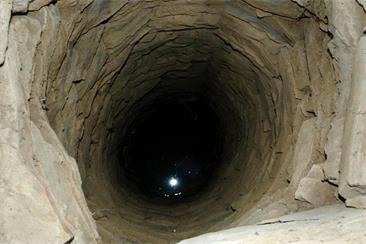

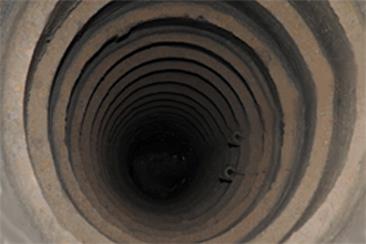

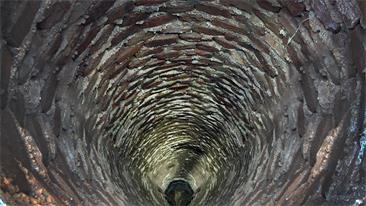

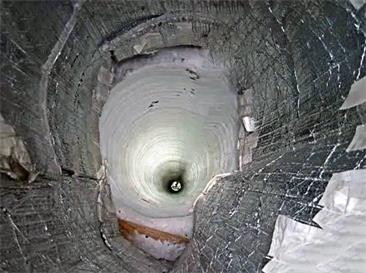

GTV300 borehole camera is widely used in engineering hydrogeology for observing geological formations within borehole observation piles. This inspection camera facilitates the detection of abnormalities, defects, and maintenance needs in wells, including damage cracks, dislocations, cavities, downhole debris, and filter pipe blockages. Moreover, it finds applications in underwater rescue operations, earthquake collapse life detection, underwater monitoring, aquaculture, and various industrial scenarios.

The camera helps prevent costly repairs and downtime by enabling quick and accurate identification of issues. When purchasing a camera system for inspection of inaccessible areas, such as well inspection, factors like cost, accessibility to power sources, and the size of the equipment are crucial. Specialized camera systems are designed for inspections in challenging environments, such as boreholes and water wells. The GTV300 borehole camera is a cost-effective option for frequent use.

Here are more details about applications of the PTZ Manhole Pole Camera.

Feature

With a number of domestic patent innovative design, using high-quality components imported from Germany, professional technology to build.

The whole machine is portable, suitable for single operation on complex occasions, and can be used in AC and DC.

The auxiliary light source design with adjustable brightness can make the detection image clearer.Using LED lighting scheme, so that the detection effect is more prominent;(patent)

The field Angle of wide-angle direct vision lens is larger than that of imported equipment (patent)

Own power supply, no need to use alternating current on site, can be tested at any time.

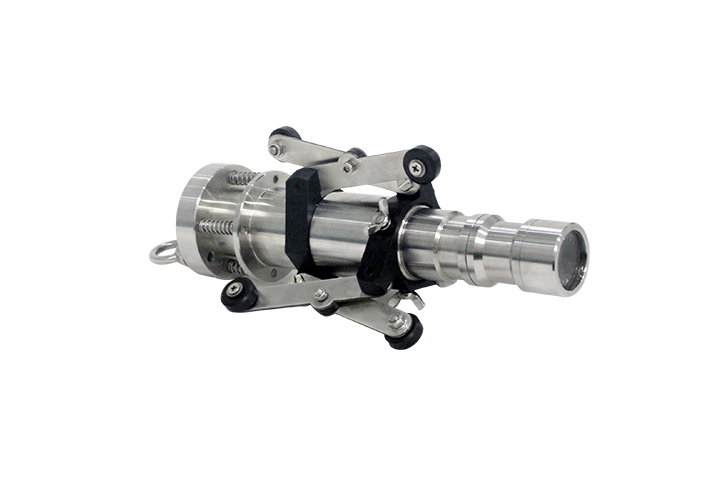

Probe alloy steel housing.Waterproof (IP 68), high temperature and pressure resistance.

Video recording and photography can be set arbitrarily, easy to use.

Parameters

Camera Type	CMOS
Resolution	1920*1080
Field of view Angle	120°
Pixel	Megapixel
Camera diameter	38mm
Screen Size	10 inch color IPS full screen
Brightness	adjustable
Video format	MPEG4/AVI
